XXX: Ducati 1199 Panigale Naked

Google+ Pinterest LinkedIn Tumblr

The 2012 Ducati 1199 Panigale represents a huge step in motorcycle design, mostly due to its frameless chassis or monocoque design. Using the engine as an integral component to the Panigale’s chassis, Ducati’s hallmark achievement was building an integrated headstock/airbox off the front cylinder. With the seat and subframe built off the rear cylinder, and the swingarm bolting directly to the motor, the Ducati 1199 Panigale was able to not only shed 22 lbs of its predecessor’s design, but also continues the Italian company’s new design trend of having components that take on multiple functional roles.

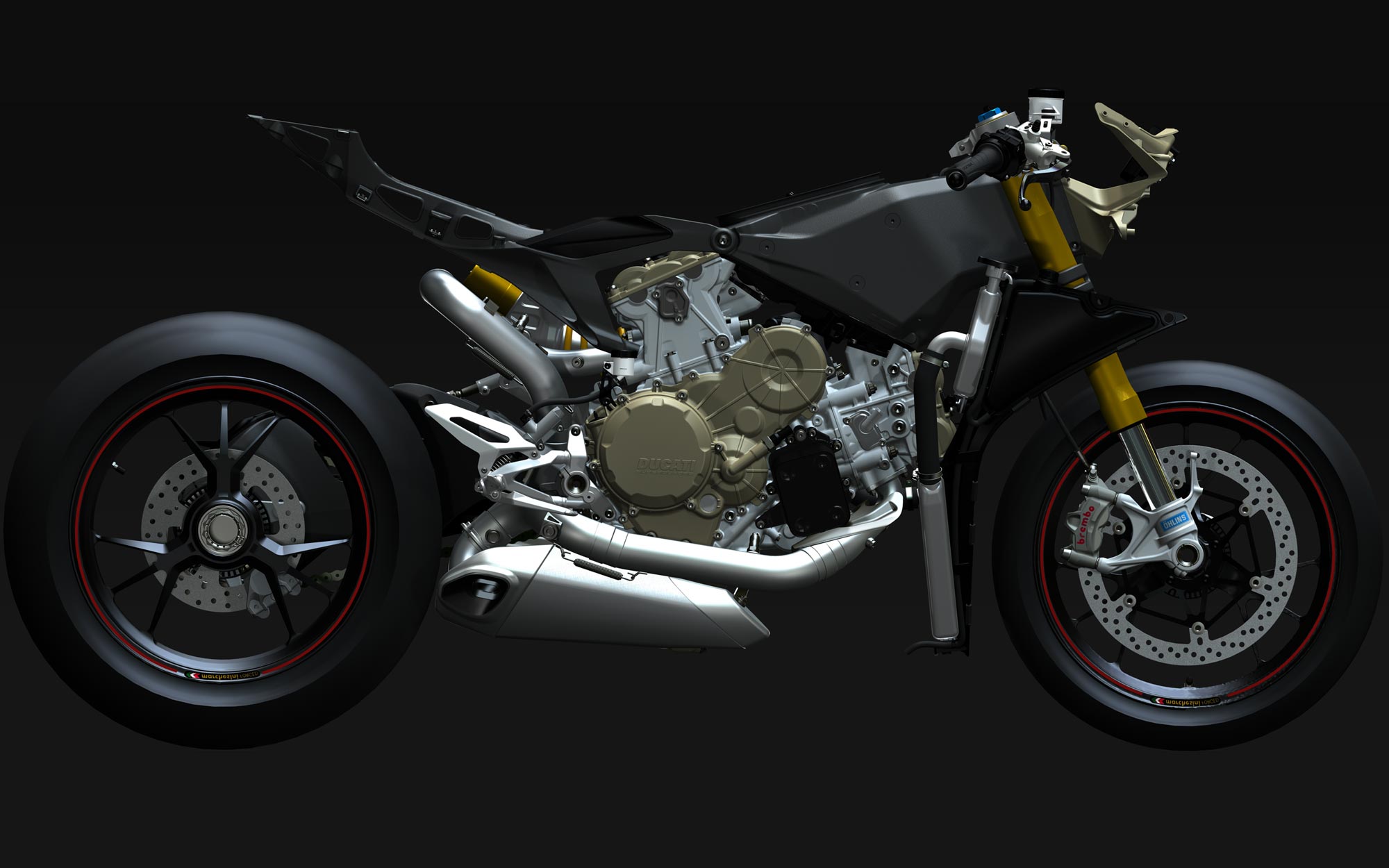

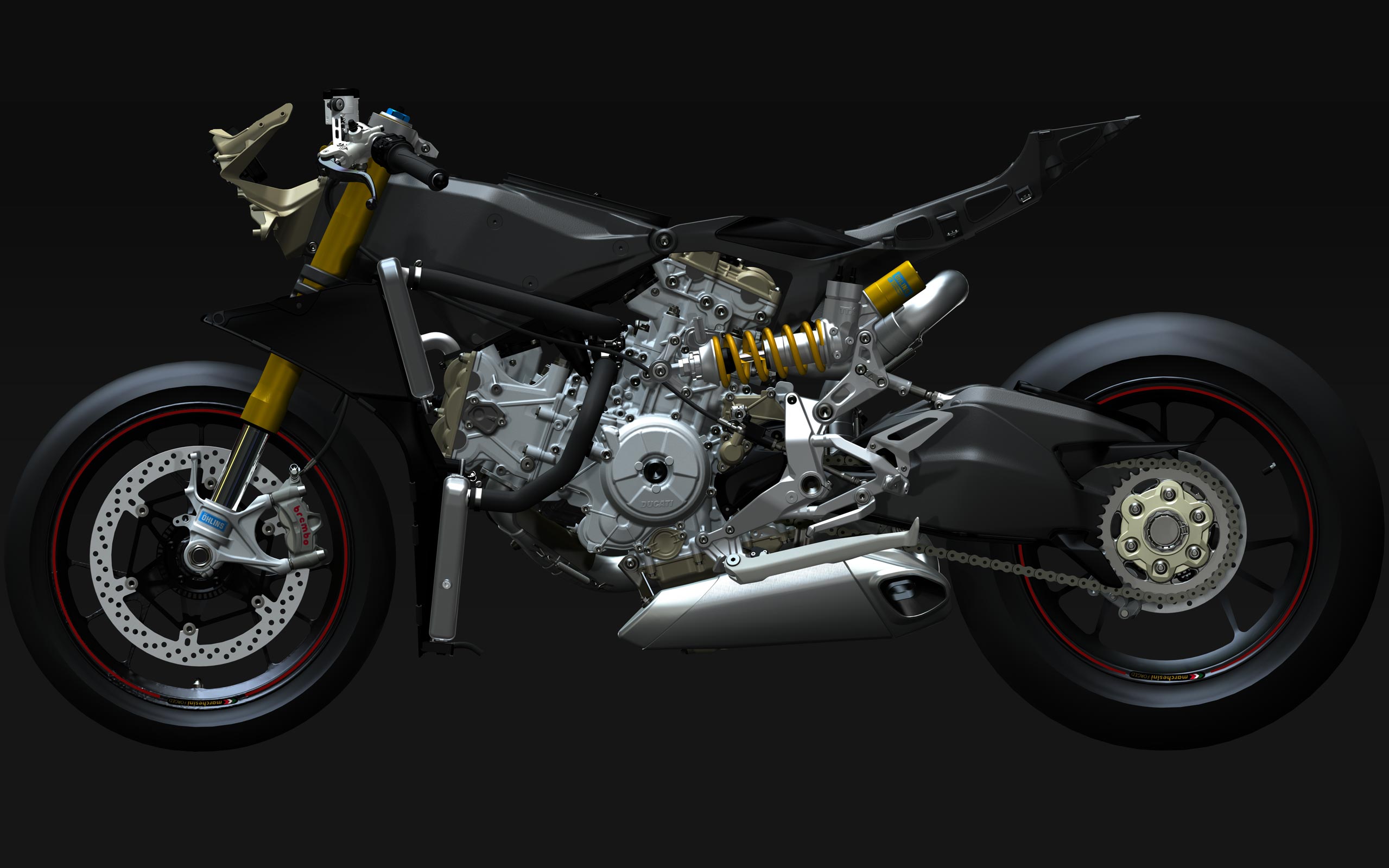

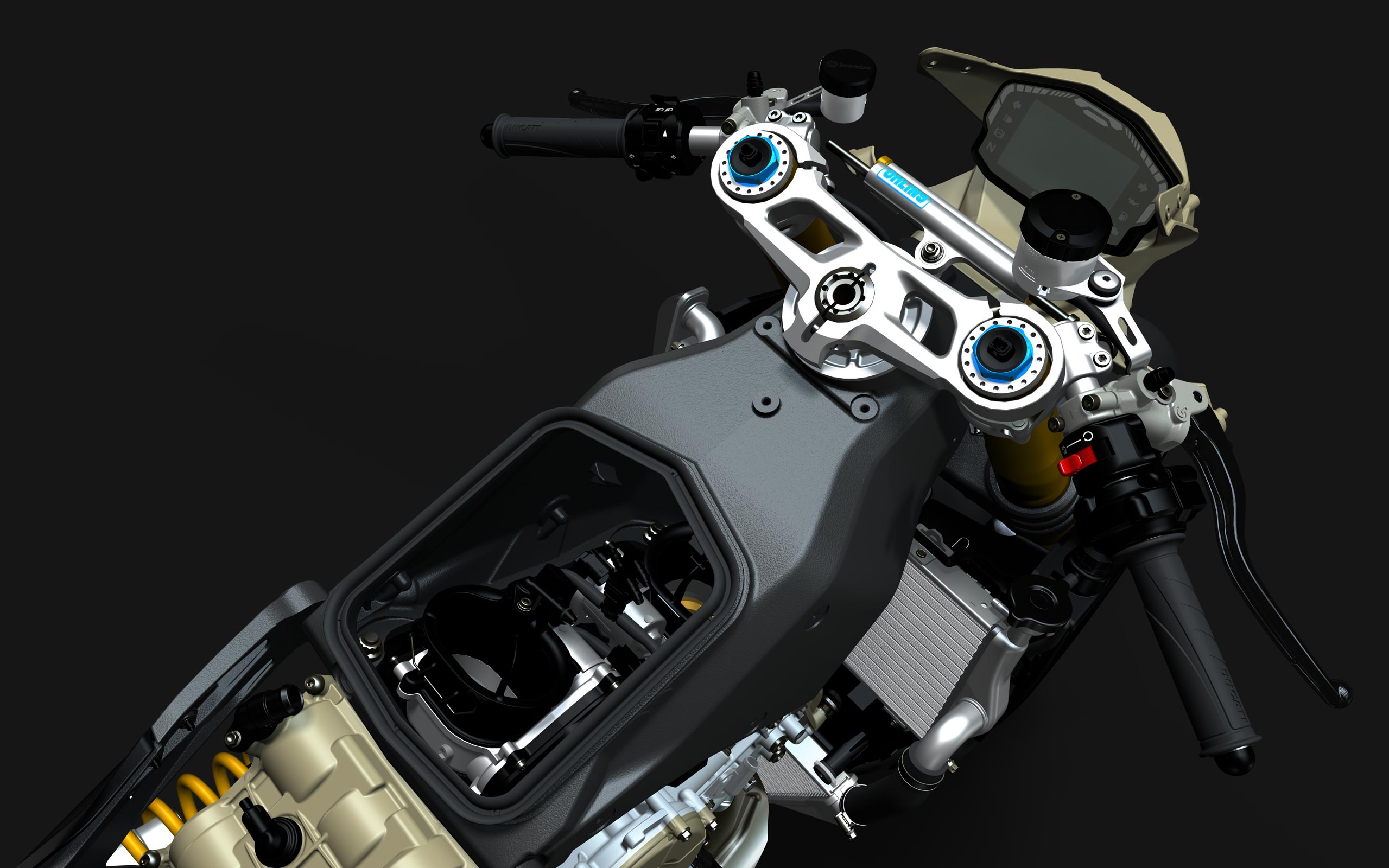

Being sure to keep the fairings on the Ducati 1199 Panigale fastened at all times, we have very little insight as to what Ducati’s new chassis looks like underneath its clothing, and after hounding Bologna for the past few weeks over the issue, these four renders of the Panigale’s frame are the best we can muster for our readers. The black background makes the black frame components hard to see, but the CAD drawings do provide at least some insight as to how the 1199 comes together. If the Panigale goes as well on the track as it does on the spec sheet, you very well could be looking at the future of production motorcycle chassis design.

Source: Ducati
