Here is the 2014 Erik Buell Racing 1190RX

Google+ Pinterest LinkedIn Tumblr

Debuting today at the AIMExpo in Orlando, the 2014 Erik Buell Racing 1190RX superbike is already the talk of the event. Based off the company’s uber-pricey EBR 1190RS racing machine, the EBR 1190RX is the RS’s more affordable, yet still potent, street bike sibling.

Featuring 185 peak horsepower in a 419 lbs bulk (sans fuel), Erik Buell Racing is posting some impressive numbers with the EBR 1190RX, though we think the $18,995 is the figure that will really get people excited. Putting the Erik Buell Racing 1190RX in “Ducati territory” for potential buyers, EBR is now a serious street bike company for enthusiasts to consider.

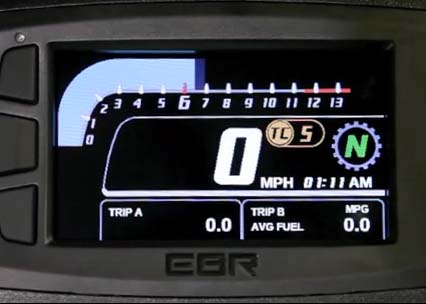

Diving into the details, the 2014 Erik Buell Racing 1190RX comes with a 21-setting traction control system (more settings is better, right?), and also features a color digital dash. With a top torque figure of 101.6 lbs•ft at 8,200 rpm, the EBR 1190RX on paper sounds like a peaky beast, though its dyno graph tells a different story.







The headlight is a full LED unit, and flanks the redesigned air intake, while the Suspension is Show Big Piston forks up front, and a full adjustable Showa shock for the rear. Unsurprisingly, Buell’s ZTL single-disc braking design is implemented on the EBR 1190RX, which should be fine as long as you keep the bike off the race track.

America, you have wanted a real American sport bike for some time now. Here is your chance.

2014-Erik-Buell-Racing-1190RX-09

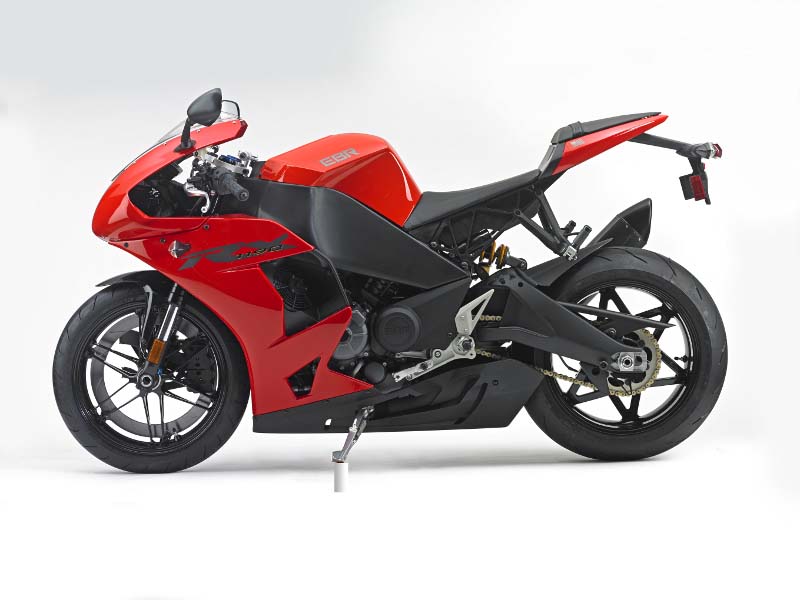

2014-Erik-Buell-Racing-1190RX-14

2014-Erik-Buell-Racing-1190RX-02

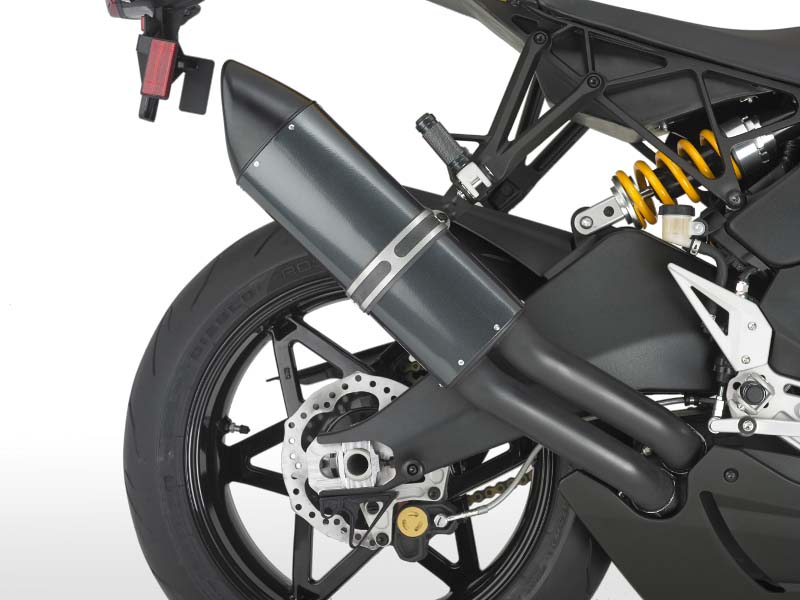

2014-Erik-Buell-Racing-1190RX-08

2014-Erik-Buell-Racing-1190RX-15







2014 Erik Buell Racing 1190RX Technical Specifications:

Engine
Type ET-V2: 72° V-Twin, Liquid Cooled, Four-stroke
Bore x Stroke 4.17 in. x 2.66in. (106 x 67.5 mm)
Displacement 72.6 cu in. (1190cc)
Compression Ratio 13.4 : 1
Fuel Delivery Electronic Fuel injection with 2 port injectors and 2 showerhead injectors
Exhaust Primary + Secondary
Peak Torque 101.6 ft-lbs. @ 8200 rpm (137.8 Nm @ 8200 rpm)
Peak Horsepower 185 hp @ 10,600 rpm
Drivetrain
Primary Drive Gear Drive 36/65
Final Drive 520 Z-ring chain, 16/41
Clutch Hydraulic actuation, vacuum operated slipper
Transmission Ratios:
1st 2.46
2nd 1.75
3rd 1.38
4th 1.17
5th 1.04
6th 0.96
Dimensions
Overall Length 80.3in. (2040mm.)
Overall Width 29.0in. (737mm)
Overall Height 43.7in. (1110mm)
Seat Height 32.5in. (826mm)
Ground Clearance 4.7in. (120mm)
Rake 22.4°
Trail 3.80in. (96.5mm)
Lean Angle 55°
Front Tire Pirelli Diablo Rosso Corsa 120/70 ZR-17
Rear Tire Pirelli Diablo Rosso Corsa 190/55 ZR-17
Fuel Capacity 4.5 gal (17.lL)
Weight (Wet, no fuel) 419lbs. (190kg)
Load Capacity 375lbs. (170kg)
Chassis
Frame Aluminum frame with integral fuel reservoir
Swingarm Optimized stiffness aluminum
Front Suspension Showa, inverted big piston front forks
Rear Suspension Showa, single shock without linkage
Front Wheel 17 x 3.5 Aluminum
Rear Wheel 17 x 6.0 Aluminum
Front Brake 386mm (15.19in.) Single perimeter rotor, 8 piston inside-out caliper
Rear Brake 220mm (8.66in.) Disc, 2-piston Hayes Performance Brakes Caliper
2014 EBR 1190RX
MSRP $18,995
Body Colors Strike Yellow, Racing Red, & Galactic Black

Source: Erik Buell Racing
