2015 Yamaha YZF-R1M — An Exclusive Track Weapon

Google+ Pinterest LinkedIn Tumblr

While the 2015 Yamaha YZF-R1 is pretty impressive in its own right, the folks at Iwata weren’t content to let things be, and thus have produced the 2015 Yamaha YZF-R1M. An exclusive extension of the R1, Yamaha calls the R1M the closest thing there is to the company’s GP machine, the Yamaha YZR-M1.

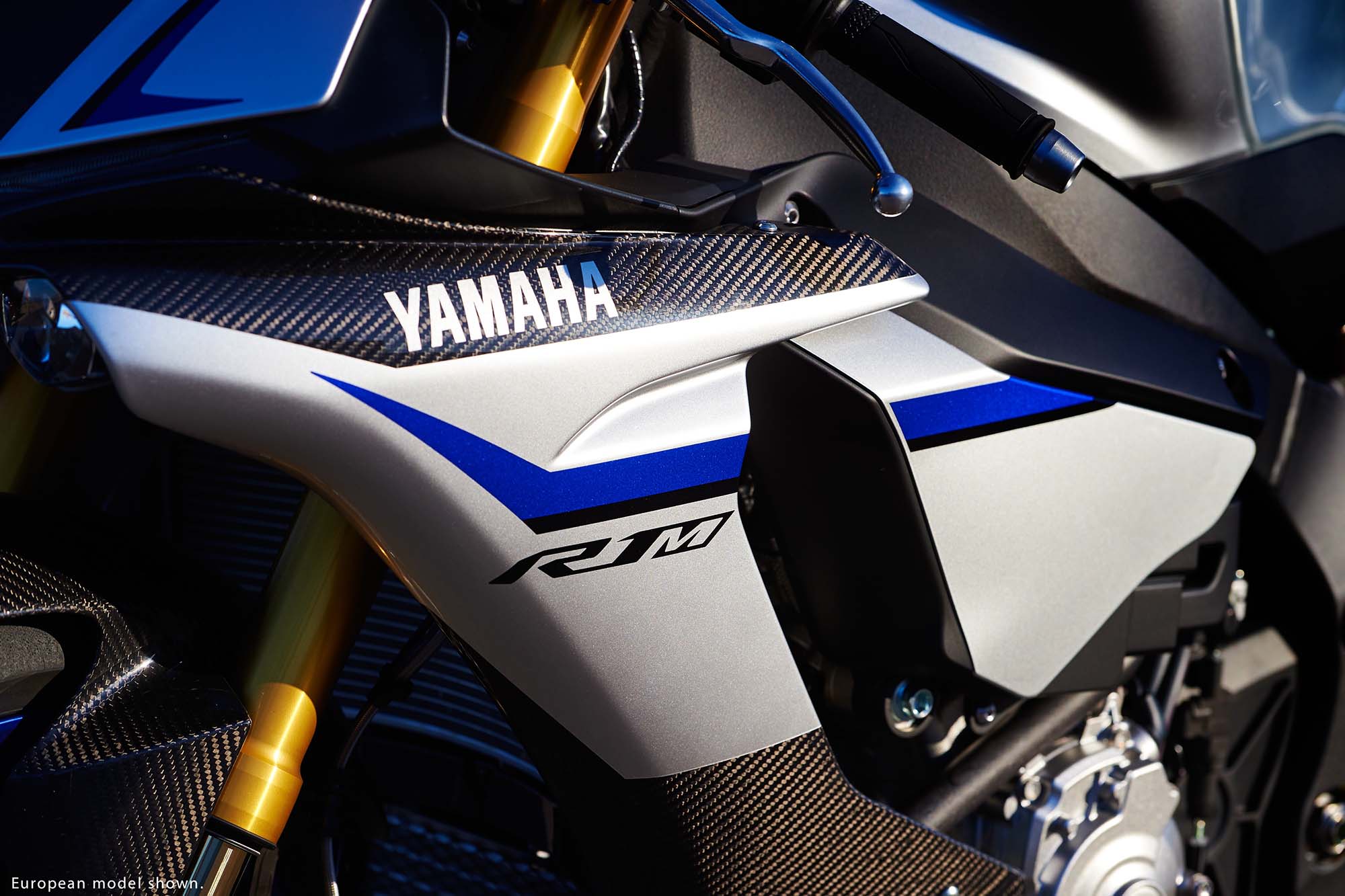

Featuring the same 200hp “CP4” crossplane 998cc inline-four engine as the base model, Yamaha has added Öhlins’ ERS semi-active suspension pieces to the superbike, along with carbon fiber fairings, and a robust GPS-powered data acquisition system.

The Yamaha YZF-R1M utilizes the powerful electronics package that Yamaha has developed, with traction control, launch control, wheelie control, slide control, and anti-locking brakes all acting in unison through the inertial measurement unit (IMU).







Able to know how the motorcycle is moving through six-axis, the Yamaha YZF-R1M can then tailor how it responds to rider and road inputs, via the engine, the suspension, and the brakes.

Yamaha has also fitted a communication control unit (CCU) as standard, which will allow a rider to download riding telemetry and GPS data via wifi, and then upload settings back to the R1M’s computer.

The electronics package systems breakdown as follows:







  • Power Delivery Mode (PWR), similar to the earlier “D-Mode” system, lets the rider choose from four settings of throttle-valve opening rate in relation to the degree of throttle-grip opening to best match their riding conditions.
  • Variable Traction Control System (TCS) with lean angle calculating the differential in front to rear wheel speed as well as the lean angle, it helps prevent rear wheel spin when exiting corners. As lean angle increases, so does the amount of control…with ten separate settings (off and 1-9) enabling the rider to dial in the exact level of control needed.
  • Slide Control System (SCS), the first of its kind on a production motorcycle comes directly from the YZR-M1. It works in tandem with the IMU, where, if a slide is detected while accelerating during hard leaning conditions, the ECU will step in and control engine power to reduce the slide. This too can be adjusted by the rider. Four settings (1-3 and off).
  • Lift Control System (LIF): IMU detects the front to rear pitch rate and the ECU controls engine power to reduce the front wheel lift during acceleration. Four settings (1-3 and off).
  • Launch Control System (LCS), limits engine rpms to 10,000 wide open throttle. It maintains optimum engine output in conjunction with input from the TCS and LIF systems to maximize acceleration from a standing start. Three settings (1-2 and off).
  • Quick Shift System (QSS) cuts engine output so riders can up-shift without using the clutch and closing the throttle, for quicker lap times, also with three variable settings (1-2 and off).

Available in the USA starting February 2015, the Yamaha YZF-R1M comes only in Carbon Fiber/Liquid Metal, with a price tag of $21,990 MSRP. Only 500 units will be made worldwide.

2015-Yamaha-YZF-R1M-35

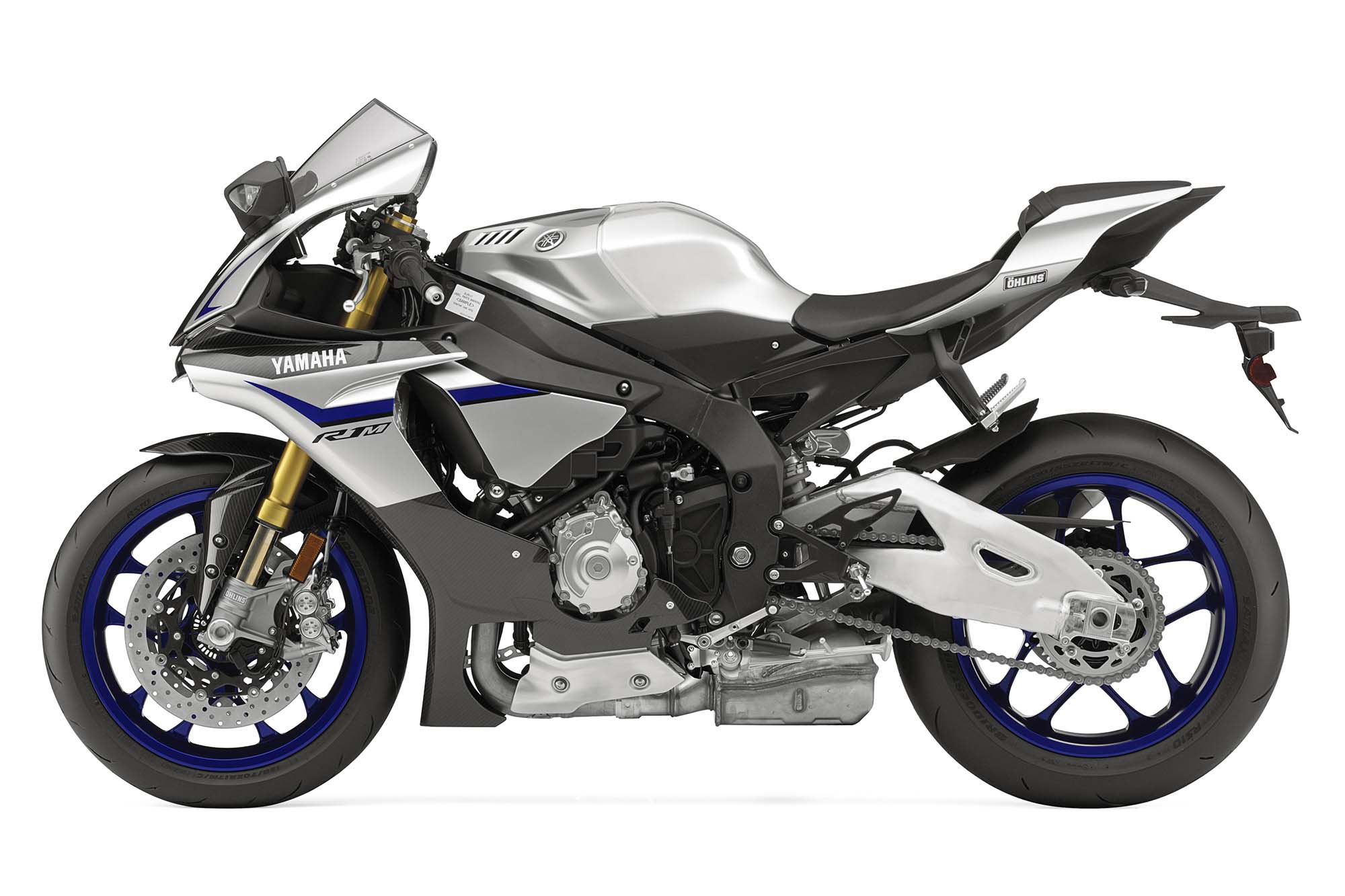

2015-Yamaha-YZF-R1M-01

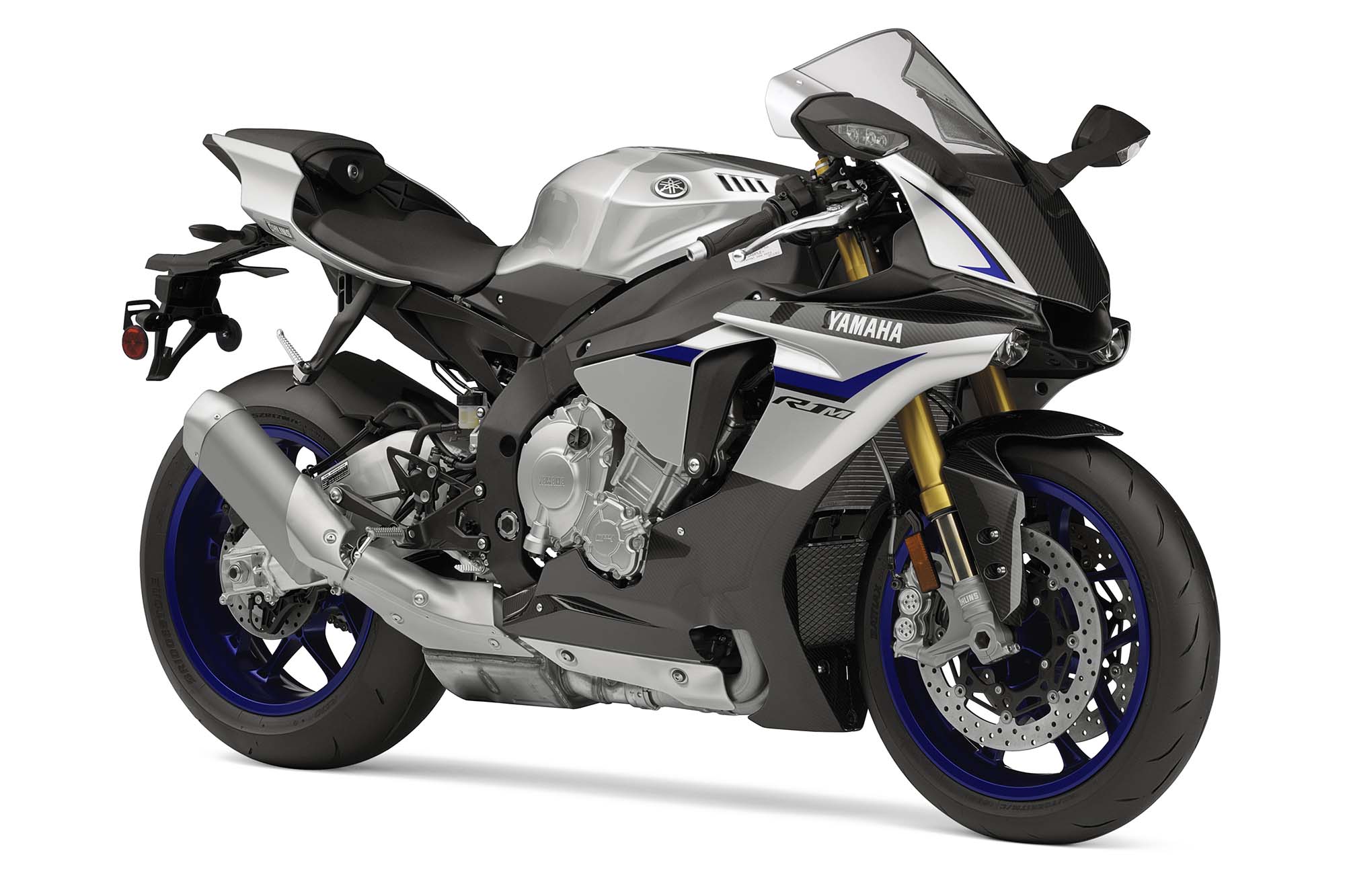

2015-Yamaha-YZF-R1M-02







2015-Yamaha-YZF-R1M-03

2015-Yamaha-YZF-R1M-04

2015-Yamaha-YZF-R1M-06

2015-Yamaha-YZF-R1M-09

2015-Yamaha-YZF-R1M-13

2015-Yamaha-YZF-R1M-16

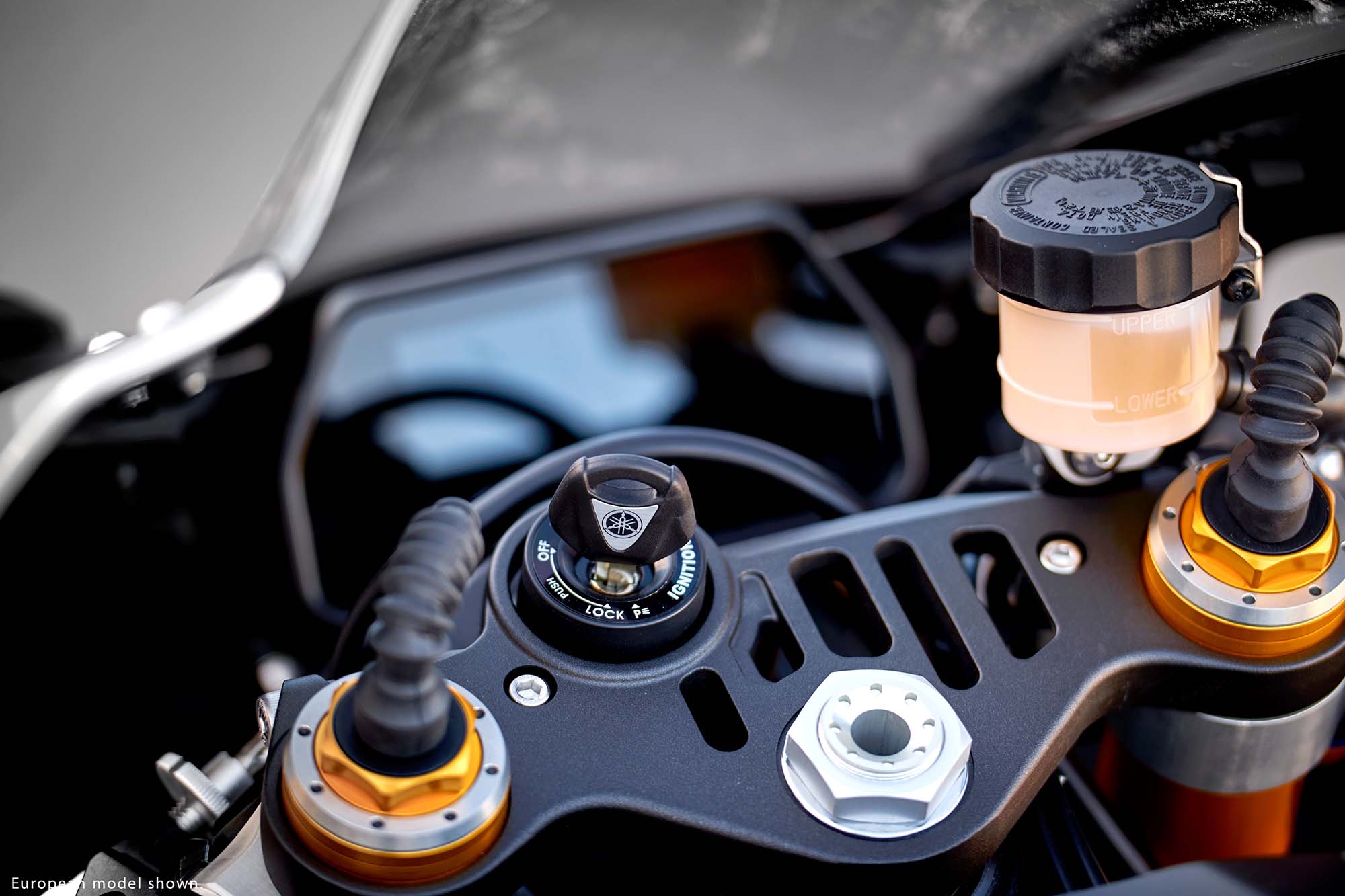

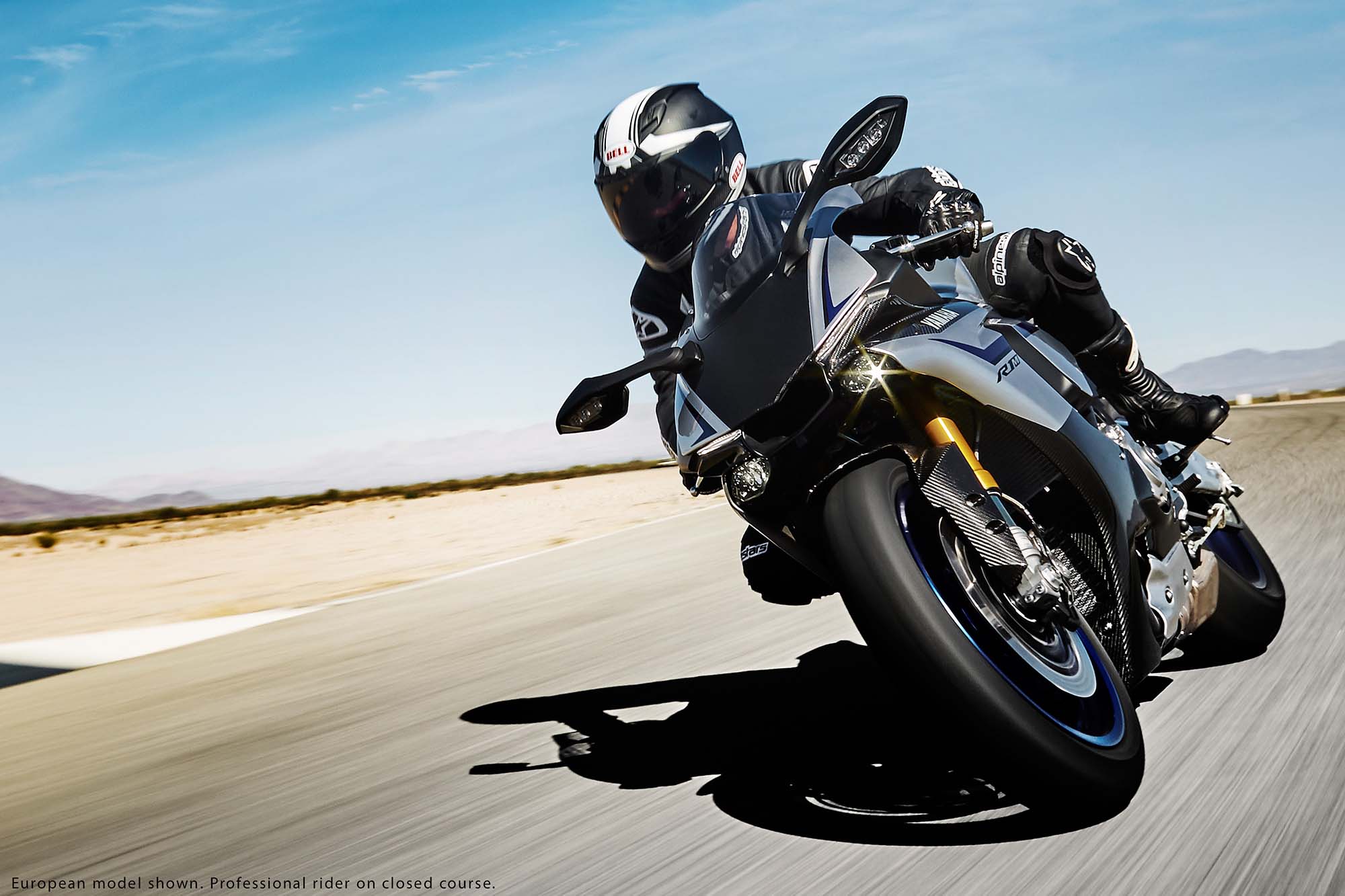

2015-Yamaha-YZF-R1M-17

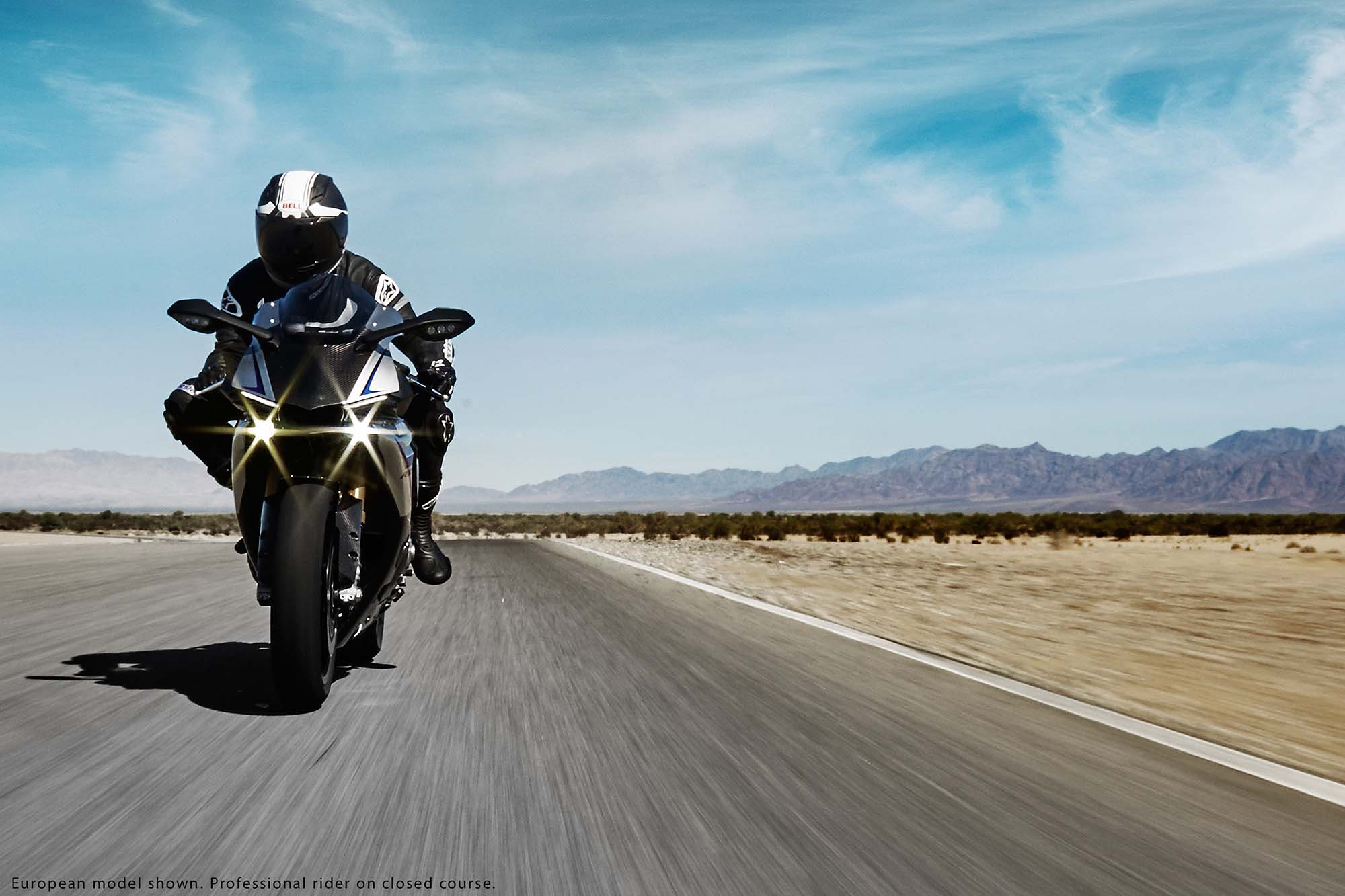

2015-Yamaha-YZF-R1M-18

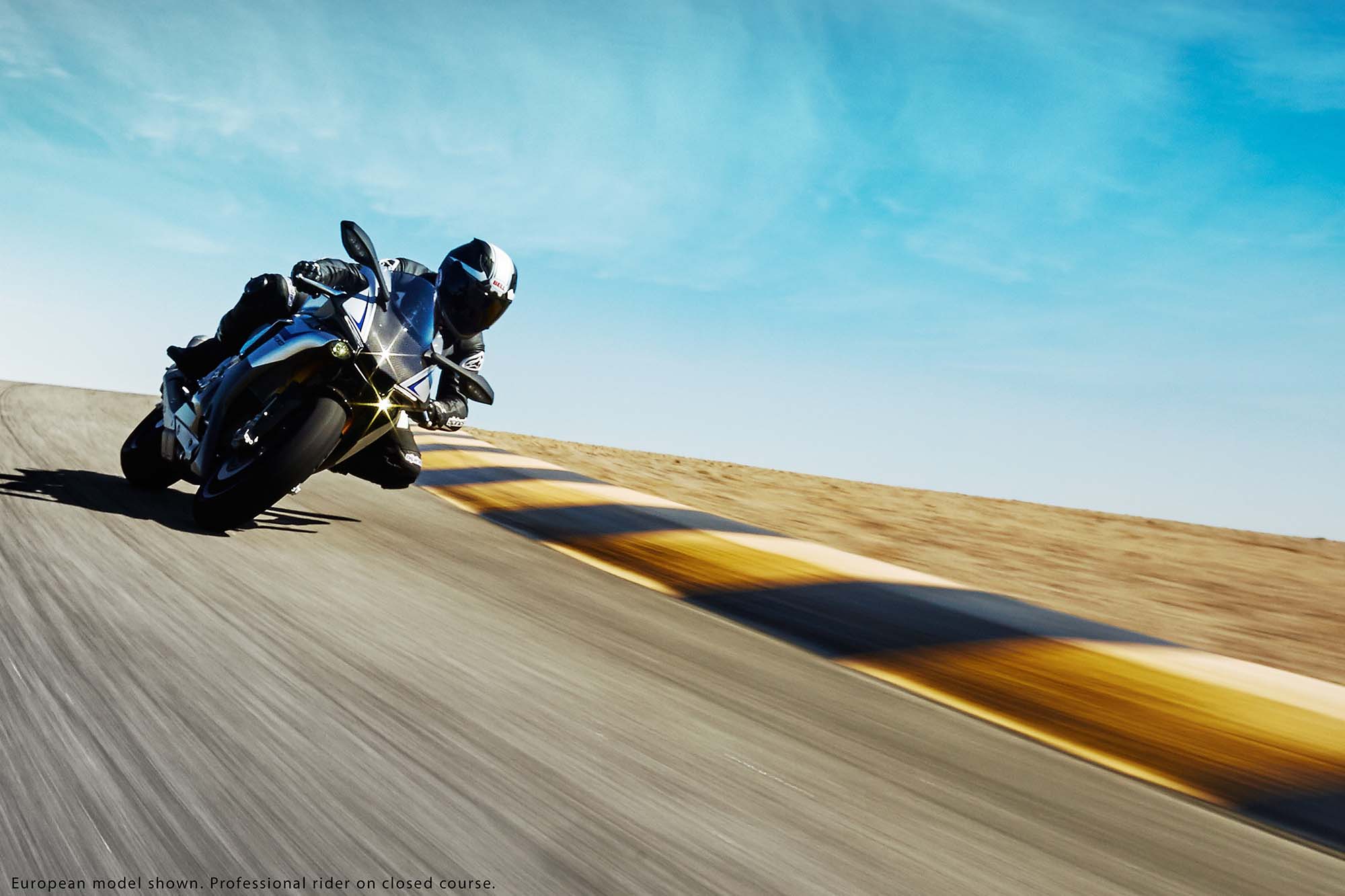

2015-Yamaha-YZF-R1M-19

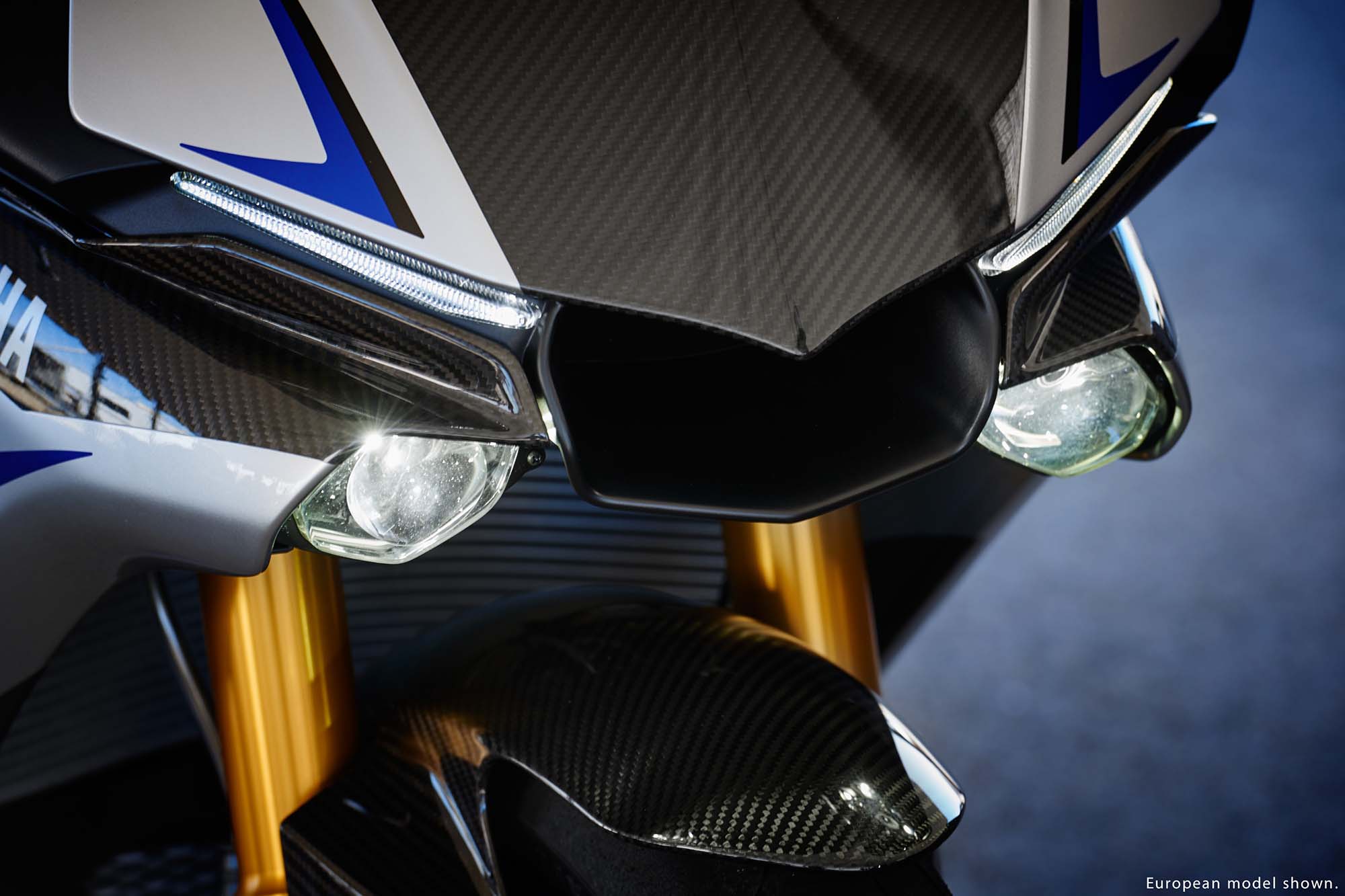

2015-Yamaha-YZF-R1M-25

2015-Yamaha-YZF-R1M-23

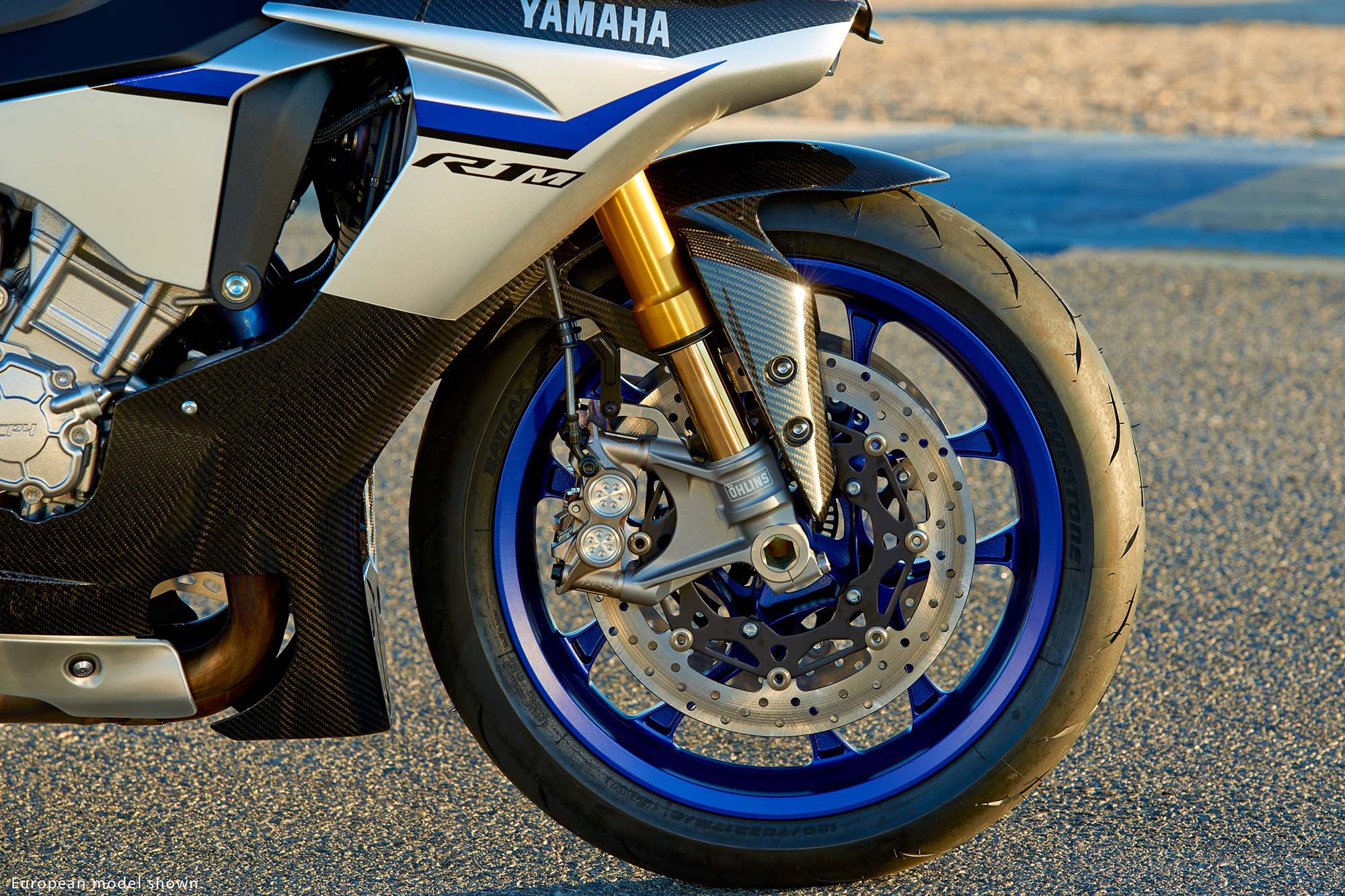

2015-Yamaha-YZF-R1M-24

2015-Yamaha-YZF-R1M-26

2015-Yamaha-YZF-R1M-27

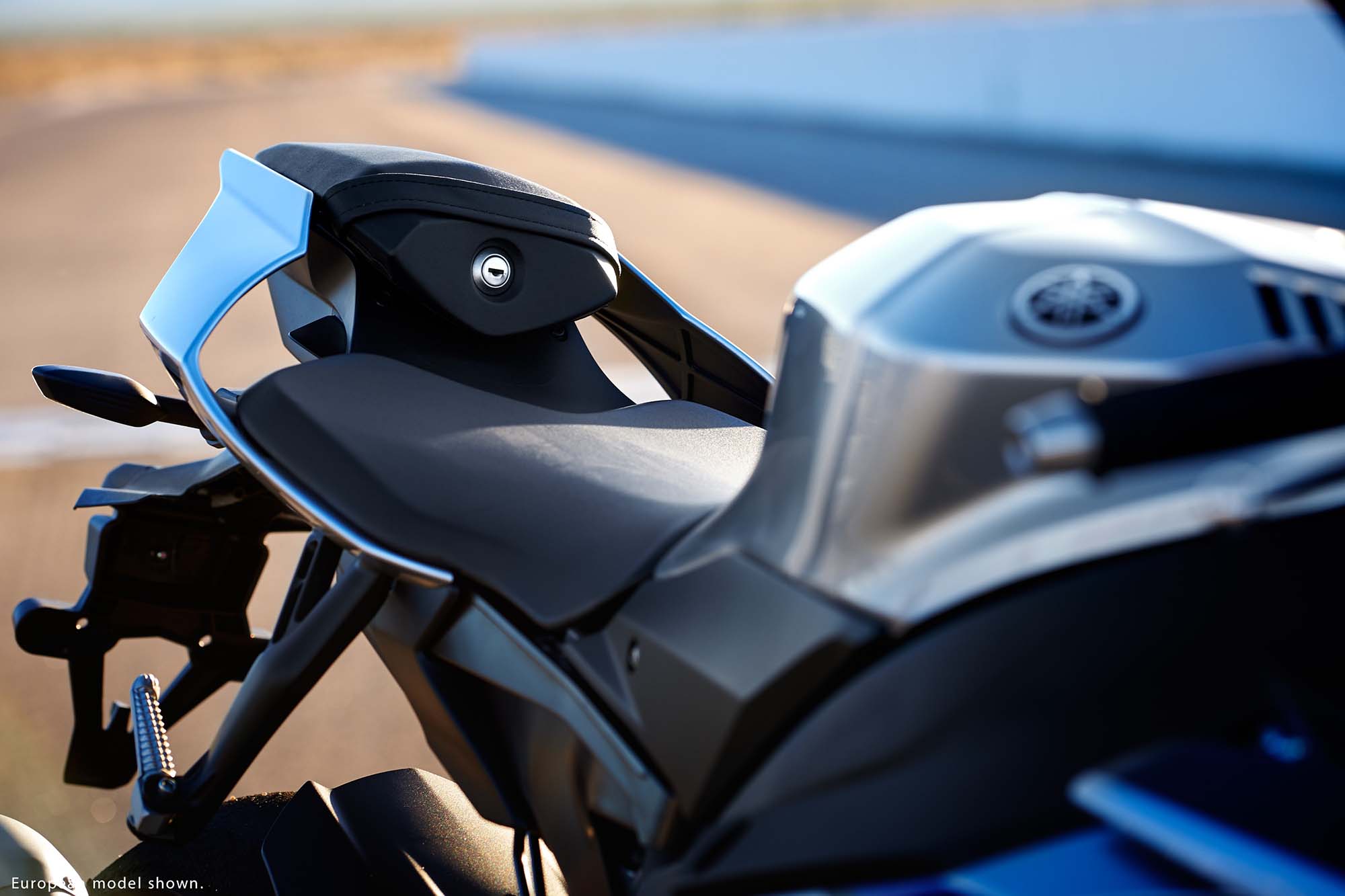

2015-Yamaha-YZF-R1M-28

Technical Specifications of the 2015 Yamaha YZF-R1M:

Engine
Engine Type 998cc, liquid-cooled inline 4 cylinder DOHC 16 valves
Bore x Stroke 79.00 x 50.9mm
Compression Ratio 13.0:1
Fuel Delivery Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed w/multi-plate slipper clutch
Final Drive Chain
Chassis

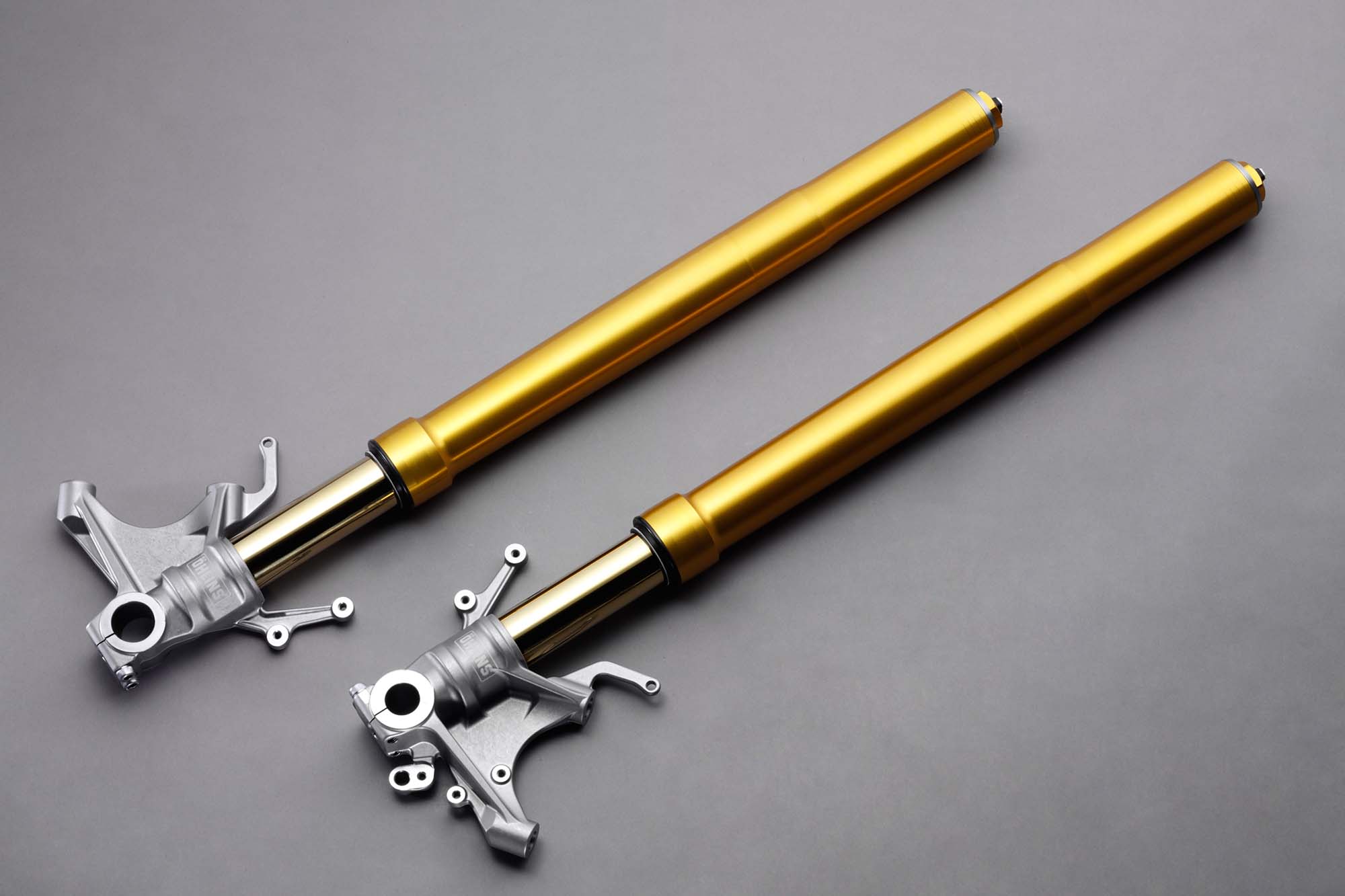

Suspension / Front 43mm Öhlins electronic suspension w/ inverted fork; fully adjustable; 4.7-in travel

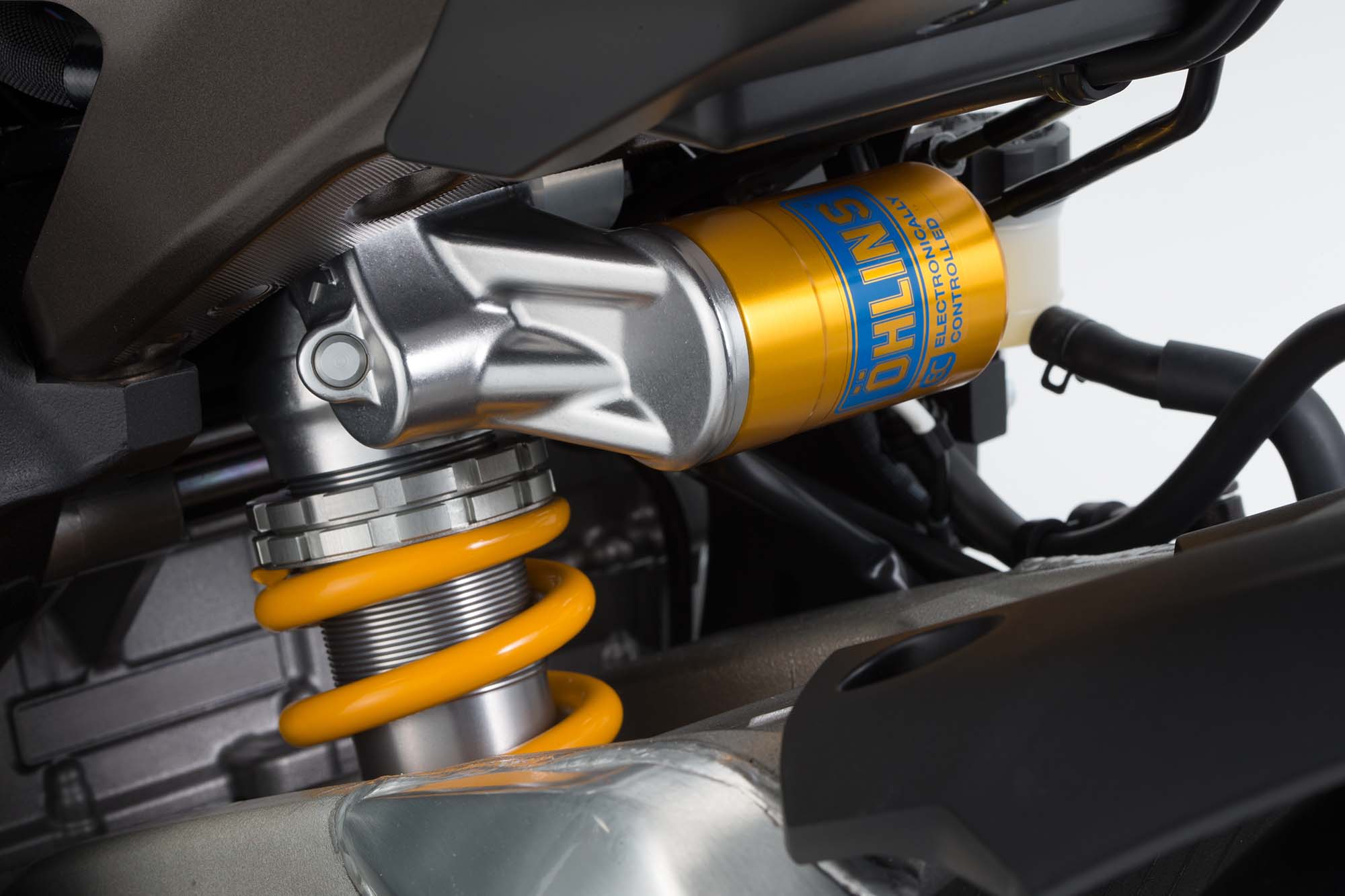

Suspension / Rear Öhlins electronic suspension w/ single shock w/piggyback reservoir, 4-way adjustable; 4.7-in travel

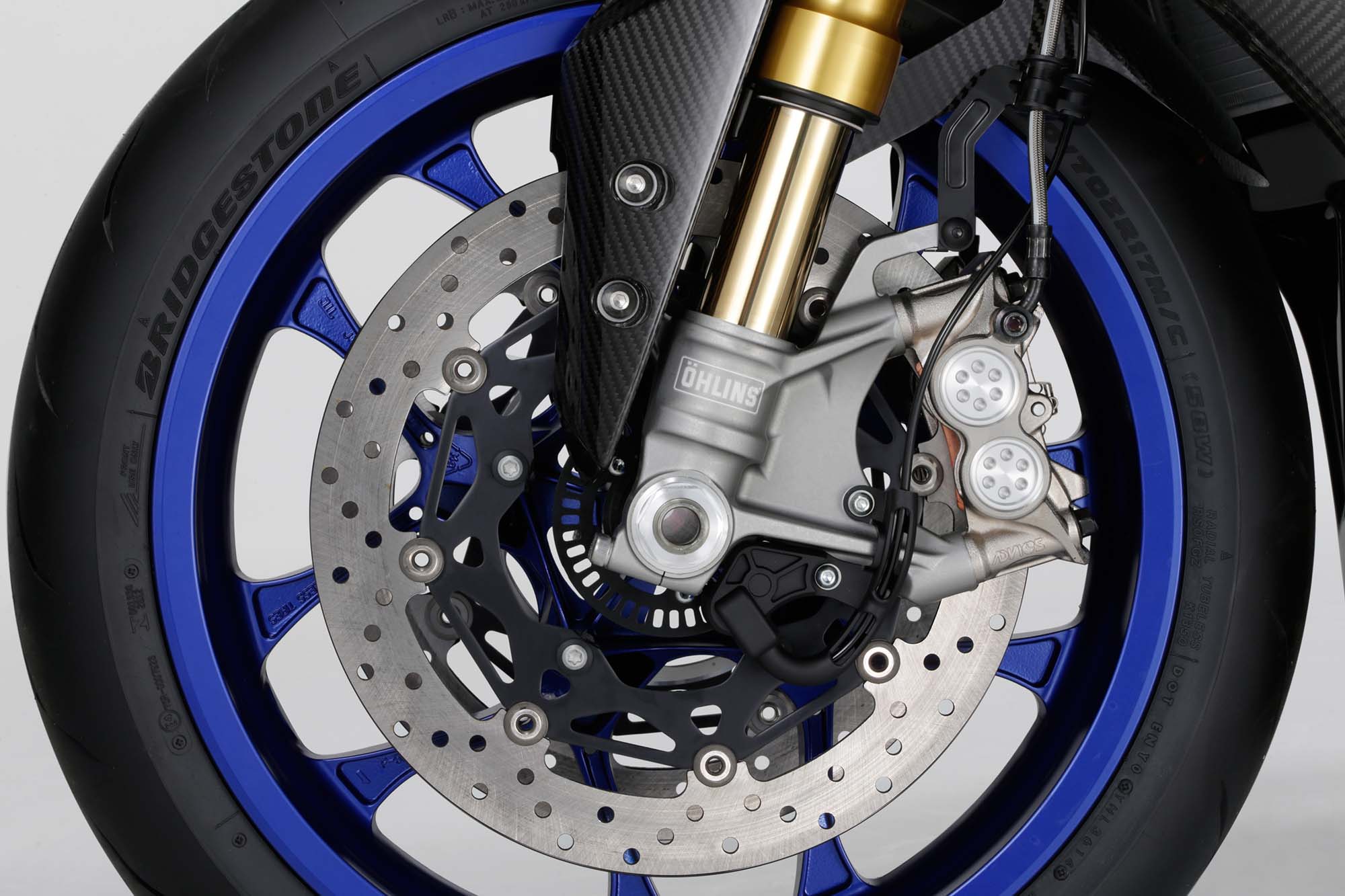

Brakes / Front Dual 320mm hydraulic disc; 4-piston caliper, UBS ABS
Brakes / Rear Dual 220mm hydraulic disc; UBS ABS
Tires / Front 120/70ZR17M/C
Tires / Rear 200/55ZR17M/C
Dimensions
L x W x H 80.9 x 27.2 x 45.3 in
Seat Height 33.9 in
Wheelbase 55.3 in
Rake (Caster Angle) 24 º
Trail 4.0 in
Fuel Capacity 4.5 gal
Fuel Economy** N/A
Wet Weight*** 443 lb
Other
Warranty 1 Year (Limited Factory Warranty)

Source: Yamaha
