UPDATE: Larger photos and more details have been added.

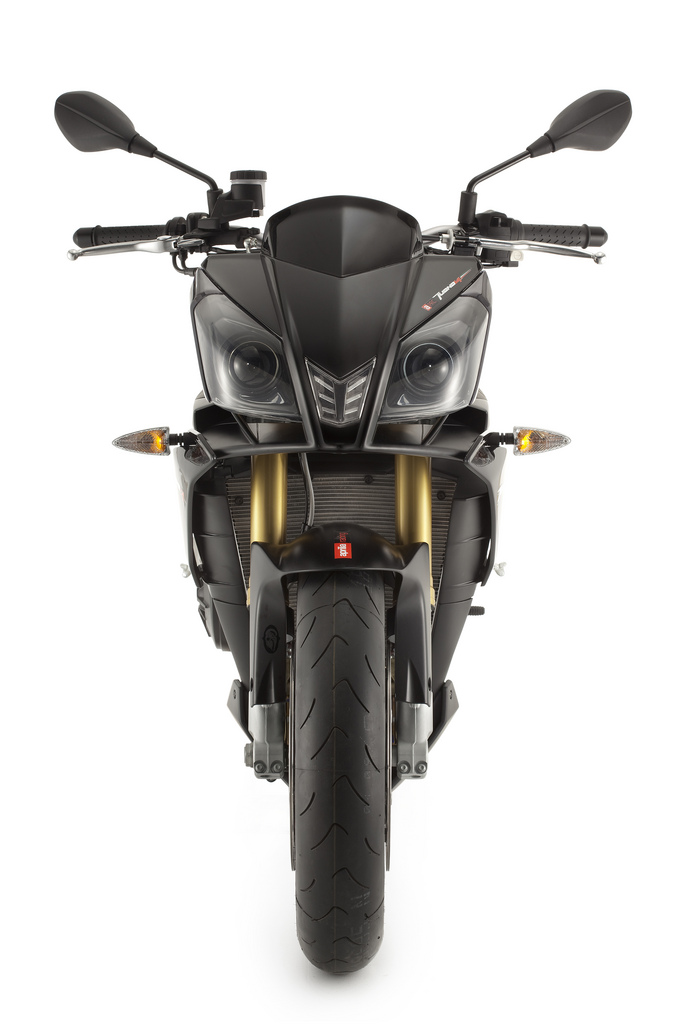

Well here’s your first look at the 2011 Aprilia Tuono V4 R. While we don’t have official information, the Tuono V4 line seemingly comes equipped with the Aprilia Performance Rider Control package. Sharing its frame with the RSV4 superbike, the Aprilia Tuono V4 R receives a de-tuned motor with performance figures coming in at 162hp and 81 lbs•ft of torque. Like the Aprilia RSV4 Factory APRC SE, the Tuono V4 R will be fitted with APRC system, which will bring traction control, anti-lock brakes, wheelie control, launch control, quick-shifter, and rider-selectable driving modes to the naked V4.

Braking power comes from radial Brembo monobloc calipers mated to 320mm discs up front. Suspension is done by Sachs, with 43mm titanium nitride (TiN) forks and a four-way adjustable (compression, rebound, pre-load, and ride height) rear shock with piggyback reservoir. The 2011 Tuono V4 R comes with new wheels that are 5 lbs lighter than the ones that come on the Aprilia RSV4 R. We apologize for the small photos after the jump, but perhaps that’s better so as to help you avert your eyes from this abortion of a motorcycle.

Derived from the flagship 2011 Aprilia RSV4 APRC, Aprilia set out to make the most powerful street naked on the market, and have clearly met that goal, besting the rival Ducati Streetfighter by 7hp. Aprilia says the 2011 Aprilia Tuono V4 R will tips the scales at 394.6 lbs with fuel, making the Tuono V4 R a very light package. Helping it reach that weight is its lighter wheels and exhaust (both of which shave 5 lbs off the bike’s curb weight). Seat height is 33″ while the fuel tank holds 4.5 gallons. No word yet on pricing or availability, but expect it to be aggressively priced against the Ducati Streetfighter, we’d expect in the $14,000 range.

2011 Aprilia Tuono VR 4 APRC Technical Specifications:

Engine type: Aprilia longitudinal 65° V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder

Fuel: Unleaded petrol

Bore and stroke: 78 x 52.3 mm

Total engine capacity: 999.6 cc

Compression ratio: 13:1

Maximum power at crankshaft: 162 hp (119 kW) at 11,000 rpm

Maximum torque at crankshaft: 79.4 lbs.-ft. (110 Nm) at 9,000 rpm

Fuel system: Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management.

Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road)

Ignition: Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil” type coils

Starting: Electric

Exhaust system: 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine management system controlled butterfly valve and integrated trivalent catalytic converter (already meets future Euro4 regulations)

Alternator: Flywheel mounted 420W alternator with rare earth magnets

Lubrication: Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)

Gearbox: 6-speed cassette type gearbox

1st: 39/15 (2.600)
2nd: 33/16 (2.063)
3rd: 34/20 (1.700)
4th: 32/22 (1,455)
5th: 34/26 (1,308)
6th: 33/27 (1,222)

Gear lever with Aprilia Quick Shift electronic system (AQS)

Clutch: Multiplate wet clutch with mechanical slipper system

Primary drive: Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659)

Secondary drive: Chain; Drive ratio: 42/16 (2.625)

Traction management: APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), all of which can be configured and deactivated independently.

Frame: Aluminium dual beam chassis with pressed and cast sheet elements.

Sachs steering damper.

Front suspension: Sachs upside down front fork with 43 mm stanchions. Low profile forged aluminium calliper mountings for radial callipers. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm

Rear suspension: Double braced aluminium swingarm; mixed low thickness and sheet casting technology. Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage. Wheel travel: 130 mm

Brakes front: Dual 320 mm floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo radial callipers with 4 horizontally opposed 32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.

Brake rear: 220-mm diameter disc; Brembo floating calliper with two 32 mm isolated pistons. Pump with integrated tank and metal braided hose

Wheel rims: Aprilia cast aluminium wheels with 3 split spoke design.

Front: 3.5”X17”

Rear: 6”X17”

Tires: Radial tubeless.

Front: 120/70 ZR 17

Rear: 190/55 ZR 17 (alternative: 190/50 ZR 17; 200/55 ZR 17)

Dimensions (default settings)

Max. length: 2060 mm

Max. width: 800 mm (at the handlebar)

Max. height: 1100 mm

Min. height from the ground: 120 mm

Saddle height: 840 mm

Centre to centre distance: 1440 mm

Trail: 107.5 mm

Steering angle: 25°

Curb weight: 394.6 pounds (179 kg) *

Tank: 17 liters (4-liter reserve included)

Source: Aprilia
