Yamaha Tricity – A Three-Wheel Leaning Scooter with CVT

03/25/2014 @ 9:06 am, by Jensen Beeler17 COMMENTS

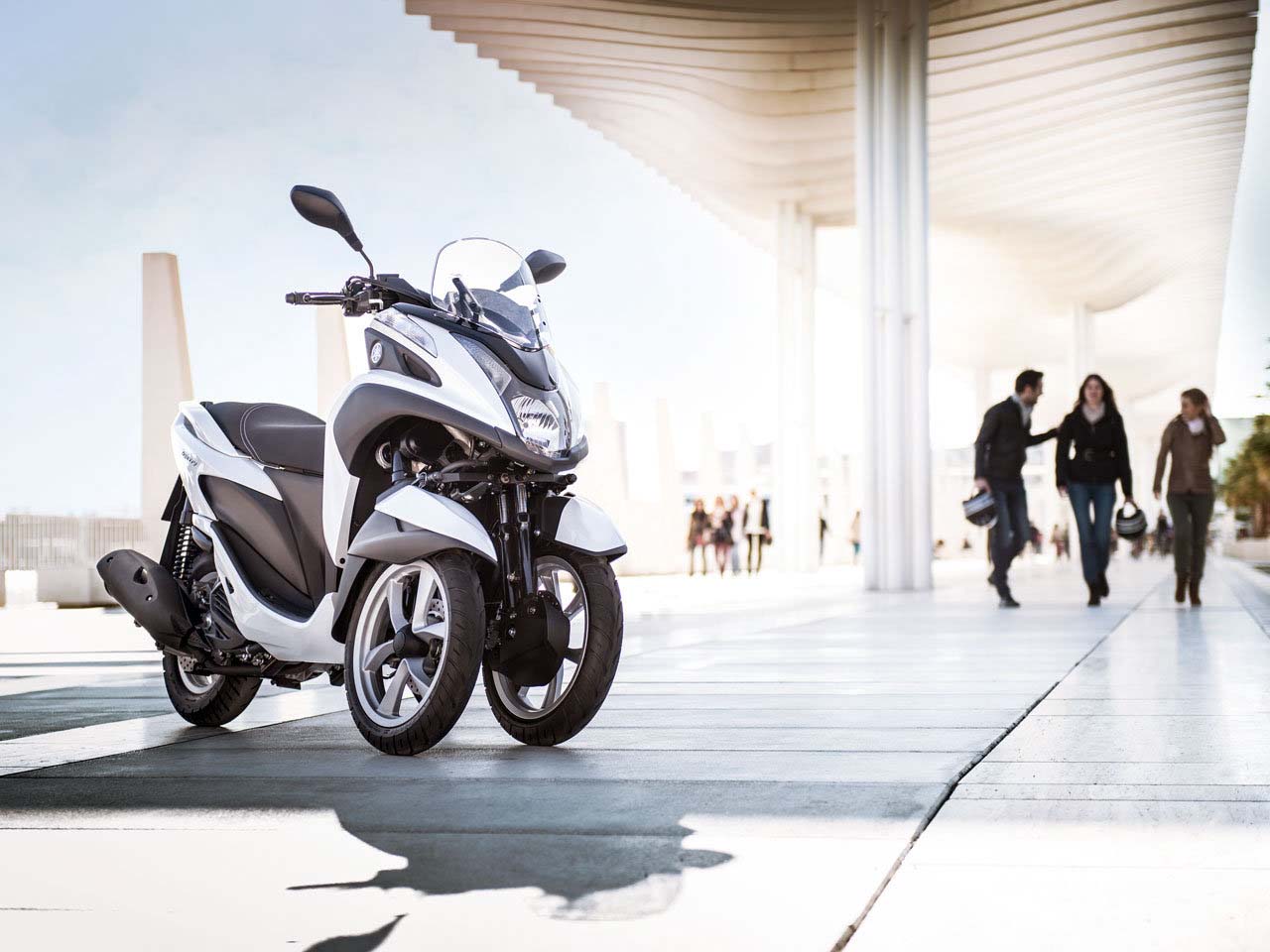

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 06 635x475

Yamaha is trickling out its Thailand-built models, and while we wait for the debut of the Yamaha YZF-R25 250cc sport bike, the tuning fork brand has an interesting new scooter for the world market: the Yamaha Tricity.

A three-wheeled leaning scooter, the Yamaha Tricity features a 125cc motor with a continuously variable transmission (CVT). Designed to sell primarily in Thailand, the Tricity is a fairly premium and feature-packed scooter for that market, and Yamaha hopes to sell over 10,000 of them in Southeast Asia, Japan, and Europe.

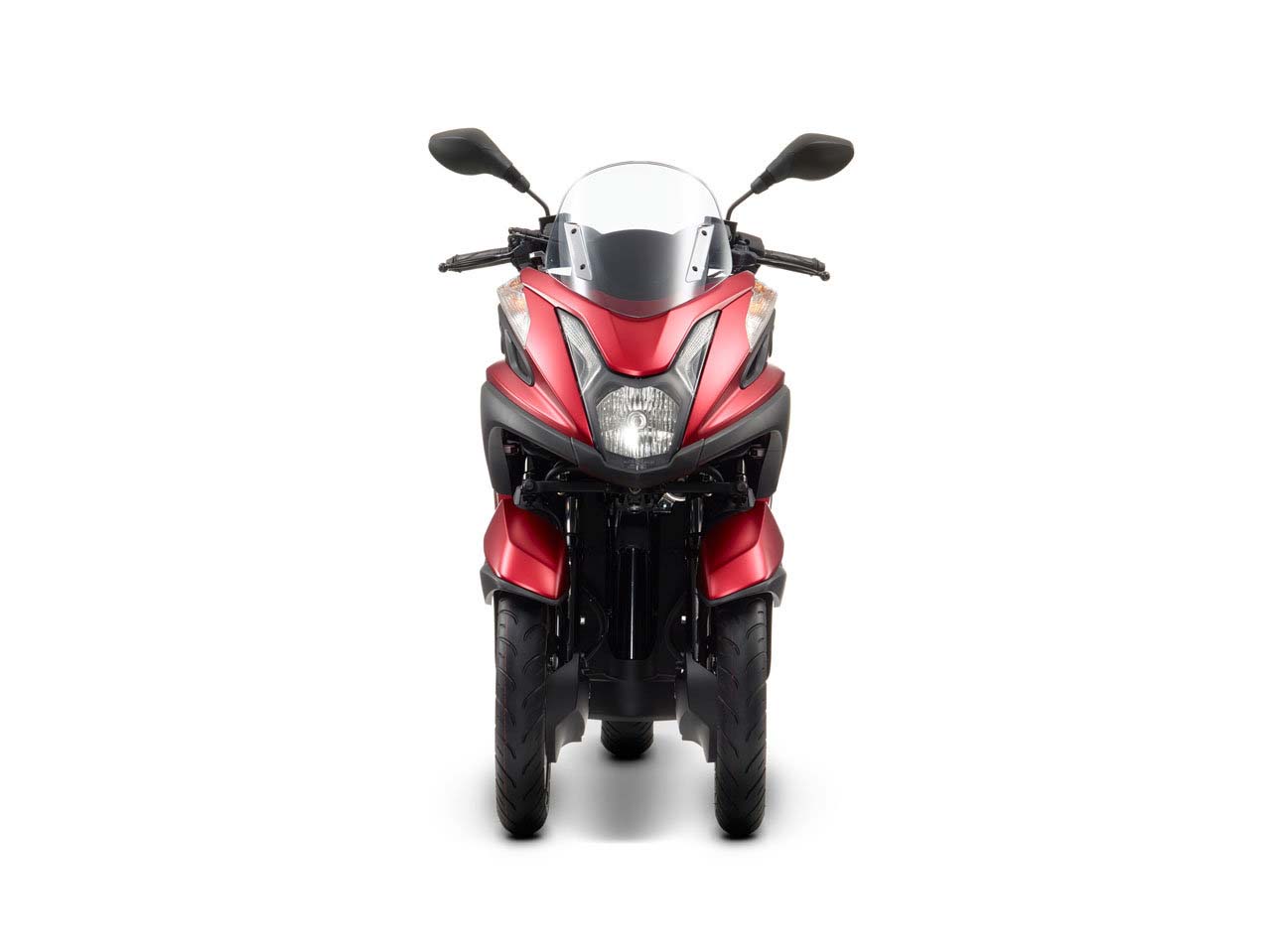

The Tricity’s three-wheel design has two wheels at the front, with one at the rear, using Yamaha’s Leaning Multi-Wheel (LMW) mechanism to have the front wheels lean with the chassis through turns.

The LMW mechanism is based off what Yamaha calls a “parallelogram link” and a “cantilevered telescopic suspension”, which allows the front wheels to move independently of each other.

It doesn’t seem like the Yamaha Tricity will be coming to the US market, but for our friends in Europe, expect a price tag in the €4,000 range.

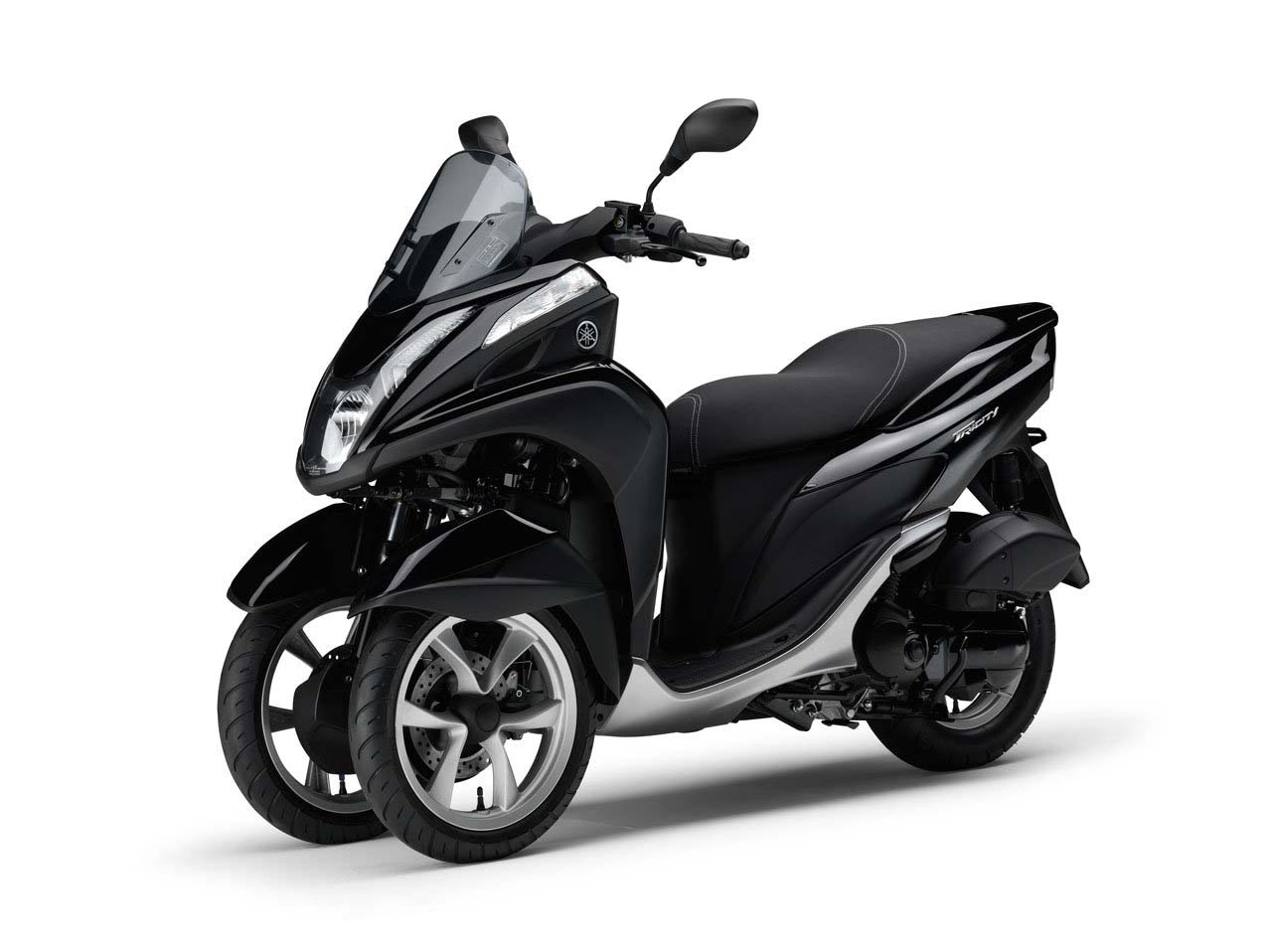

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 21 635x475

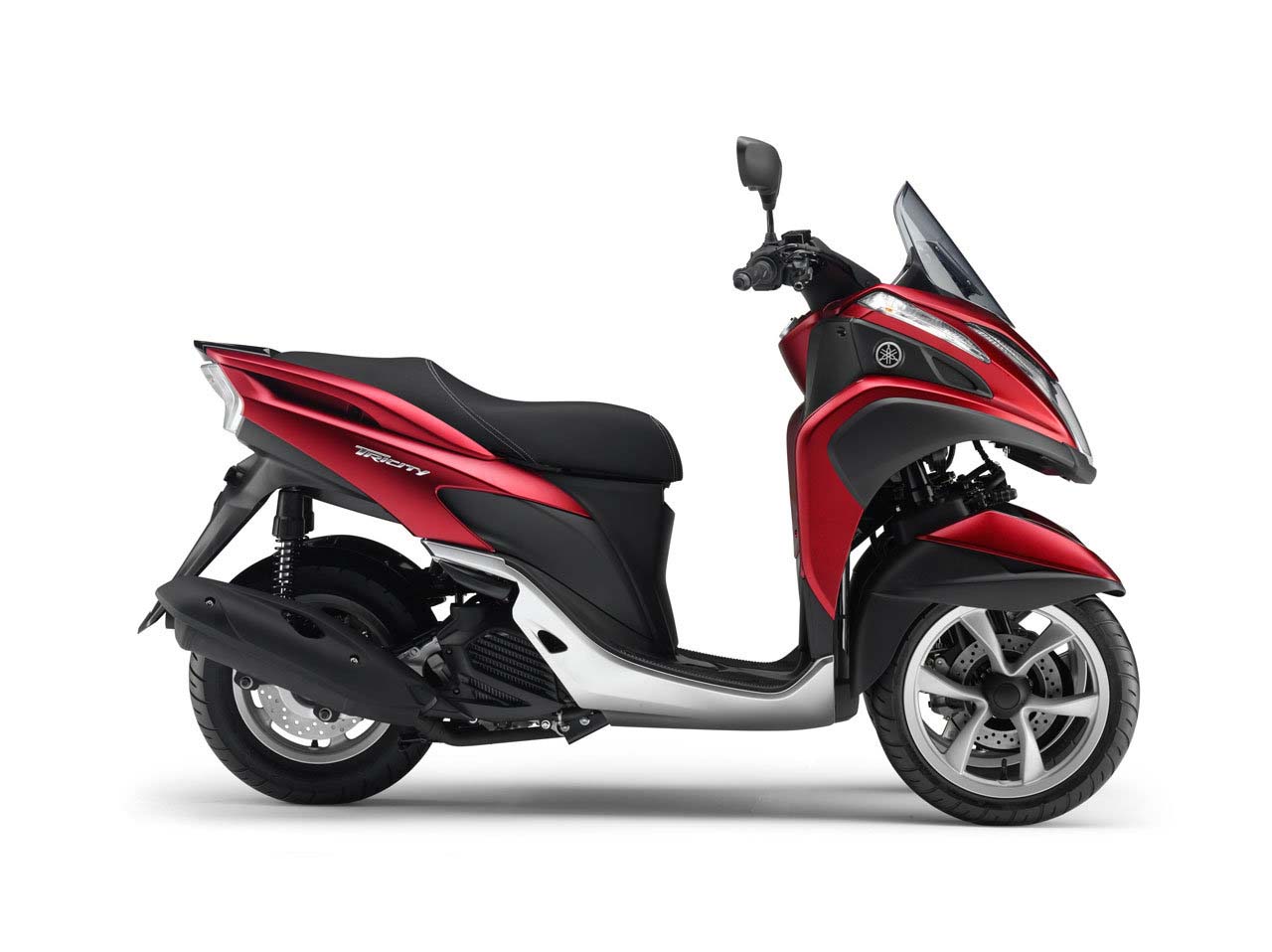

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 13 635x475

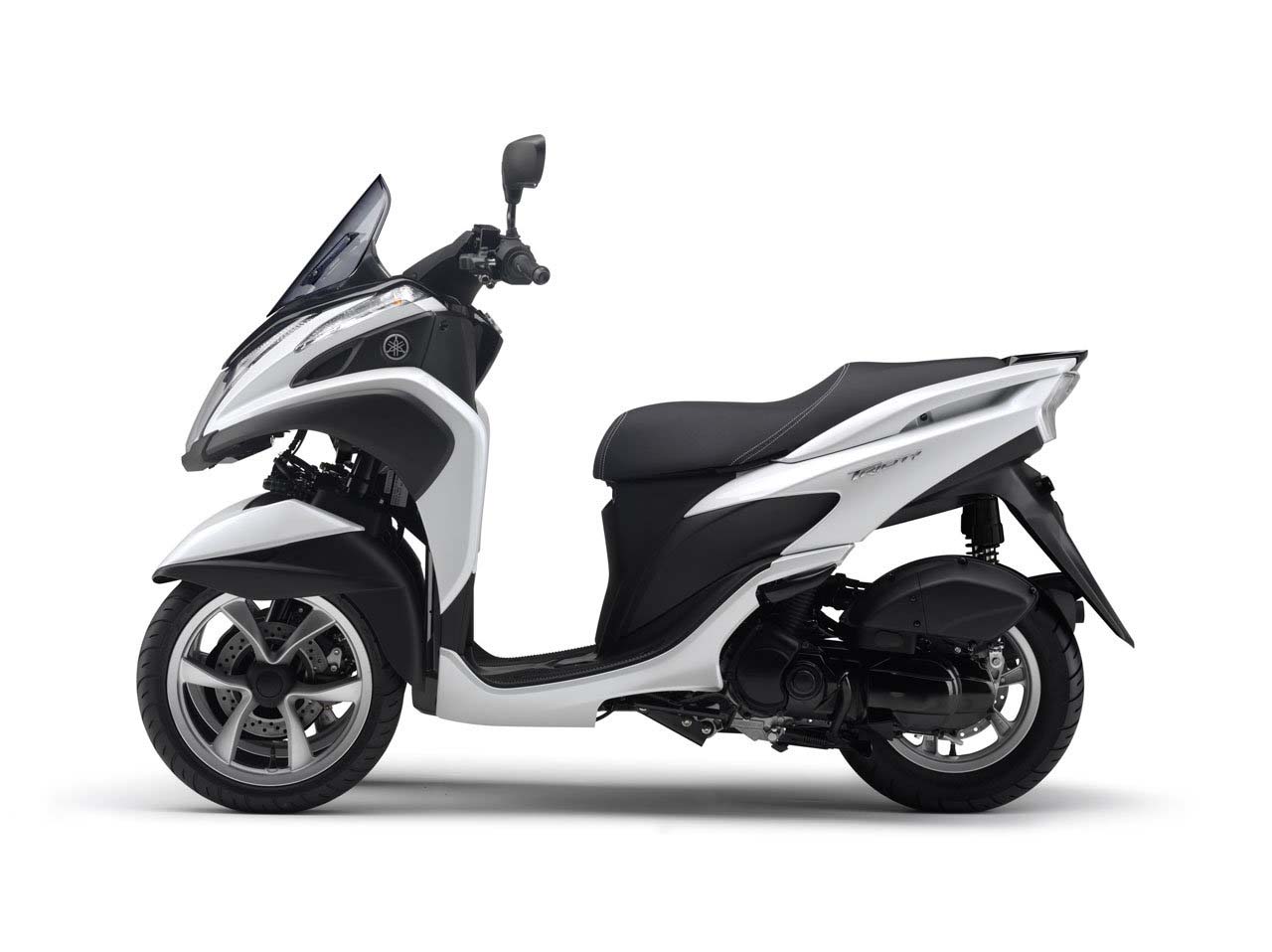

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 02 635x475

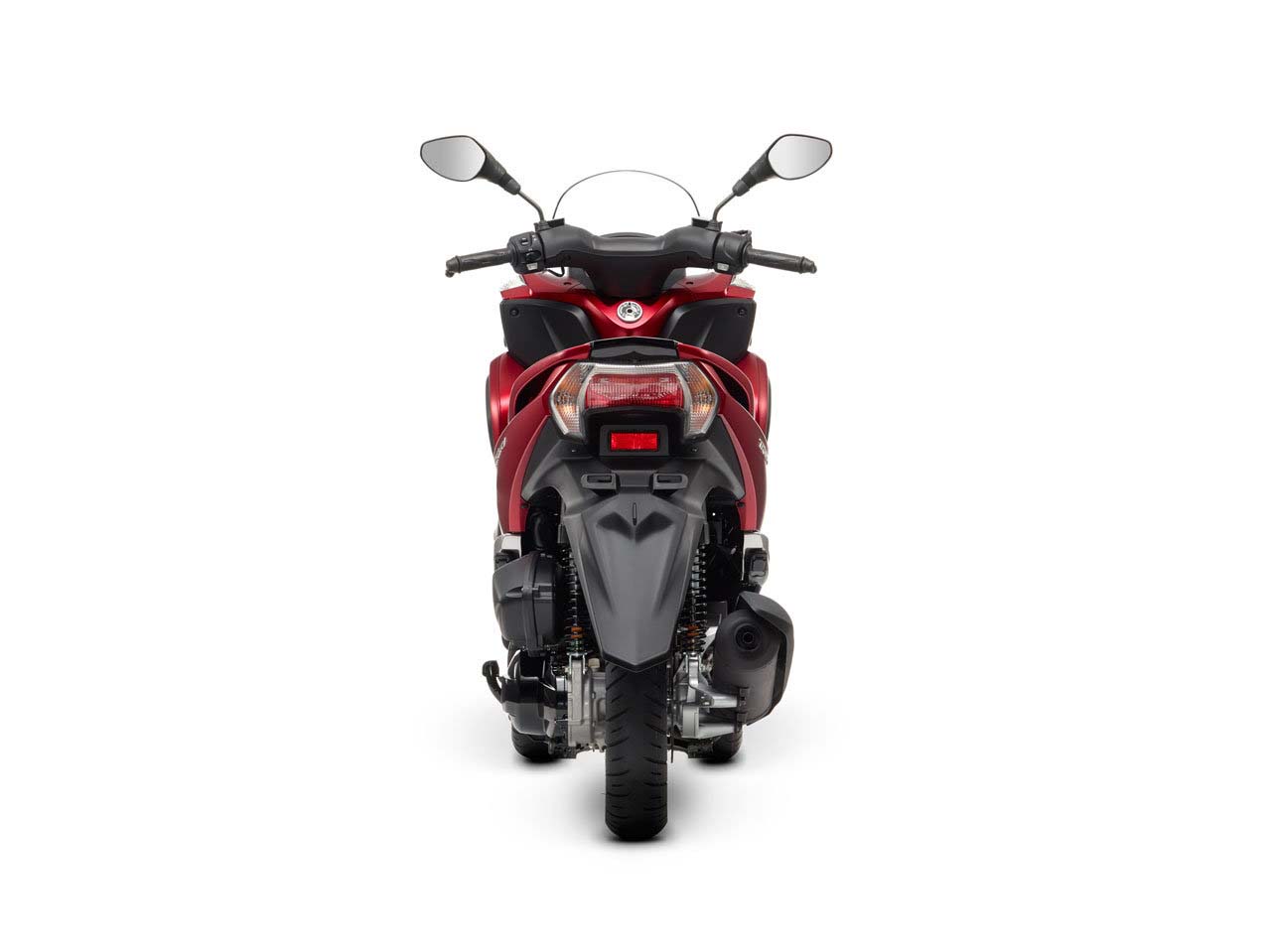

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 14 635x475

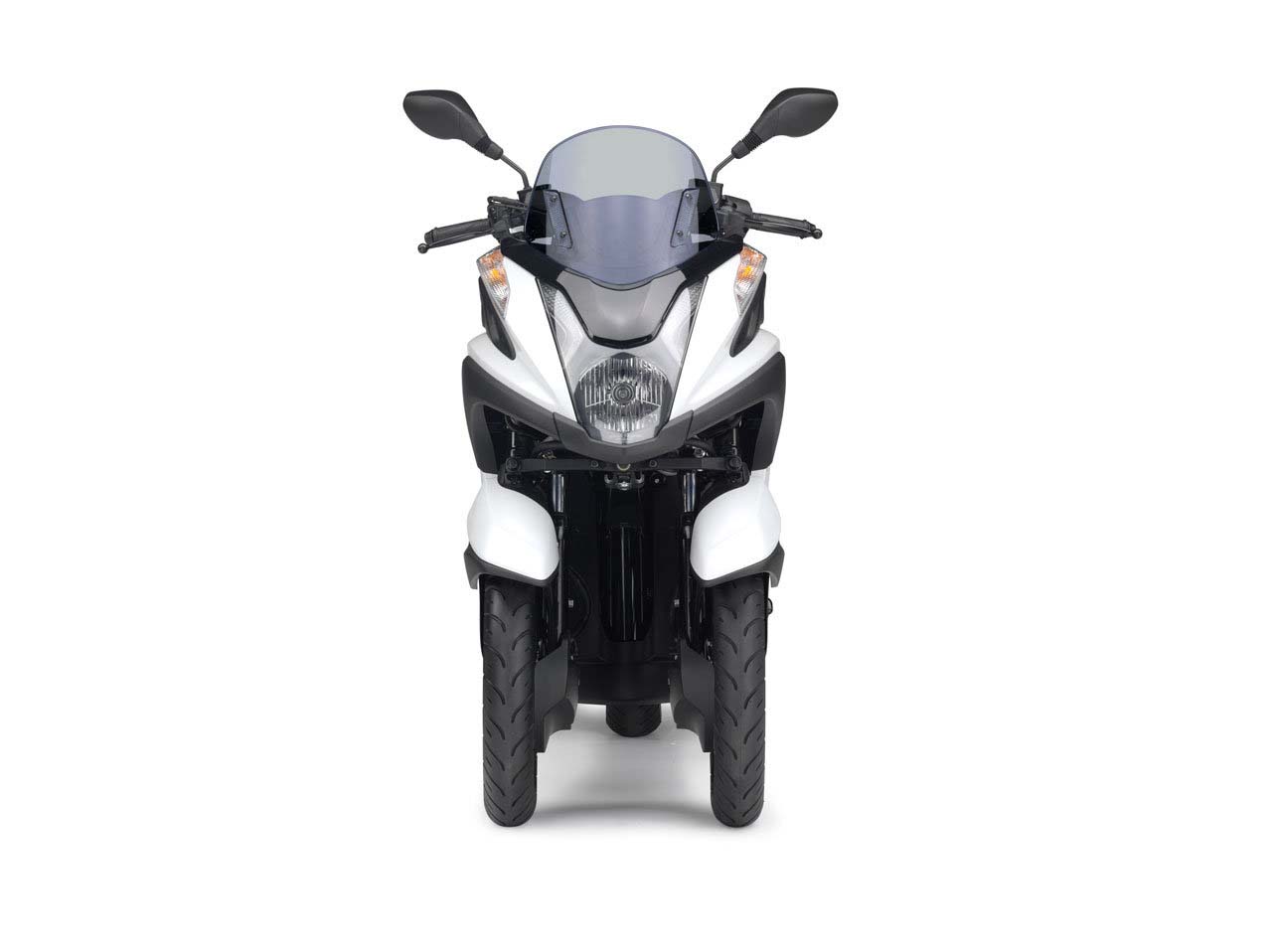

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 04 635x475

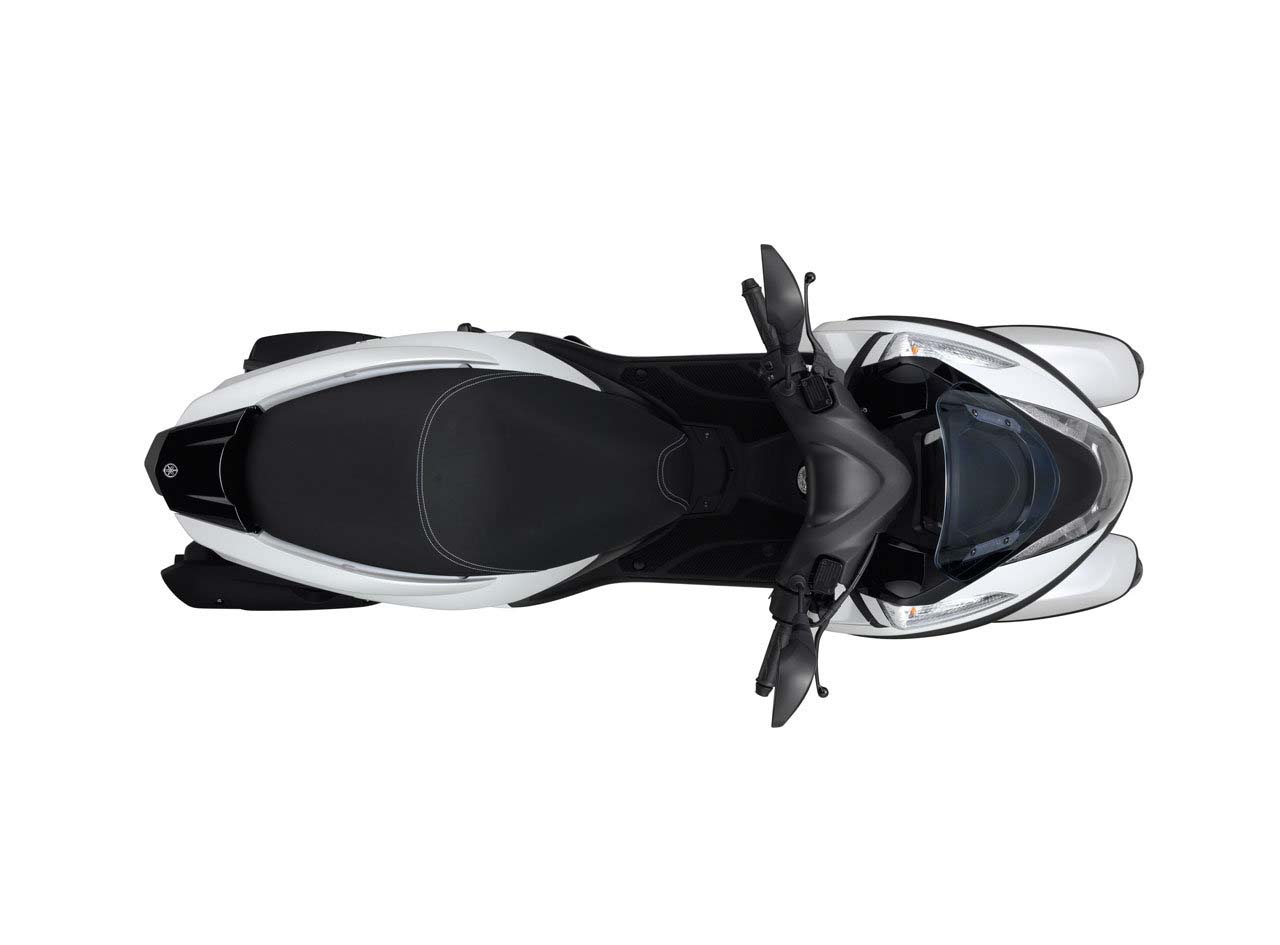

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 05 635x468

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 11 635x475

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 22 635x476

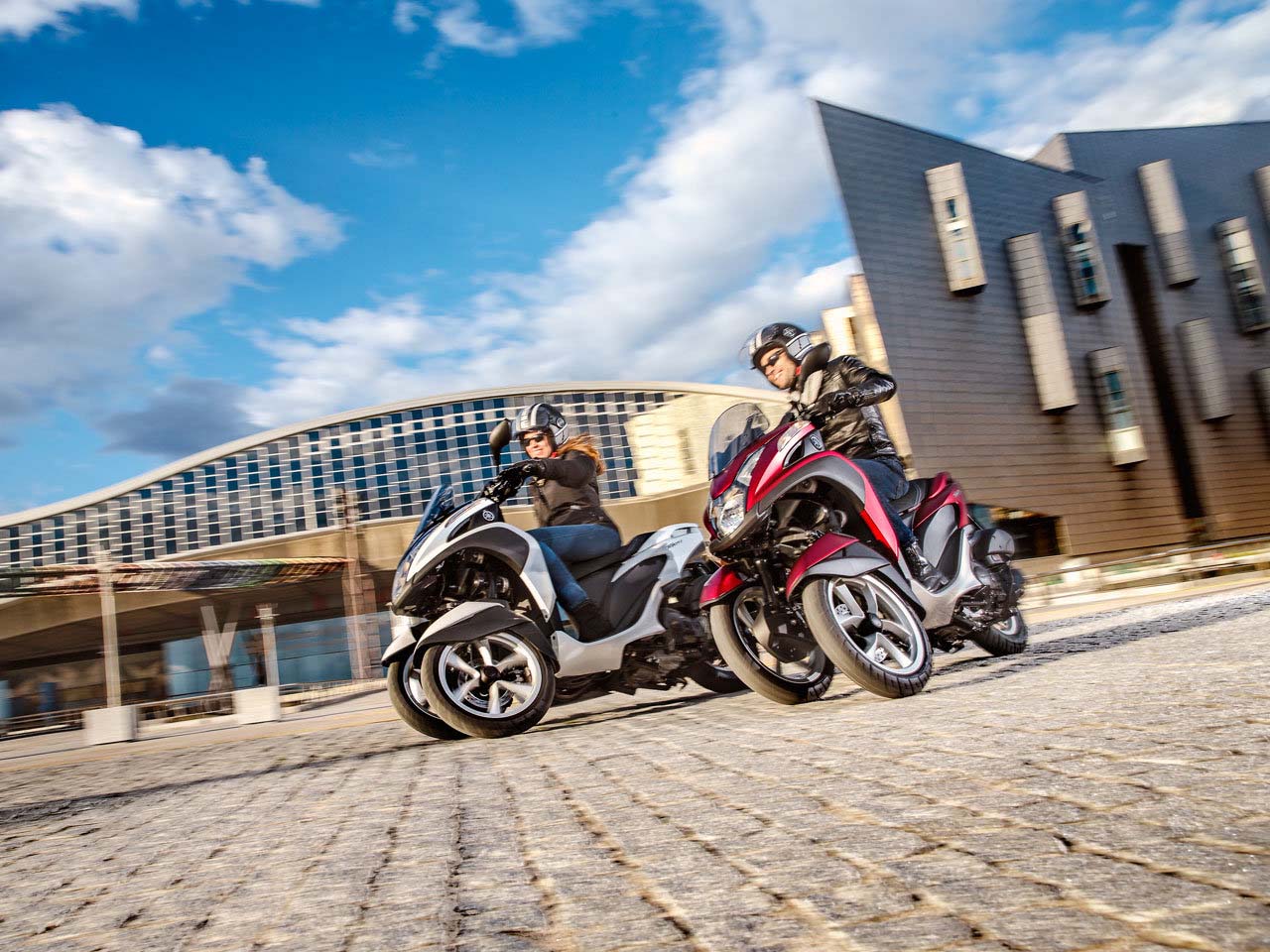

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 29 635x476

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 35 635x476

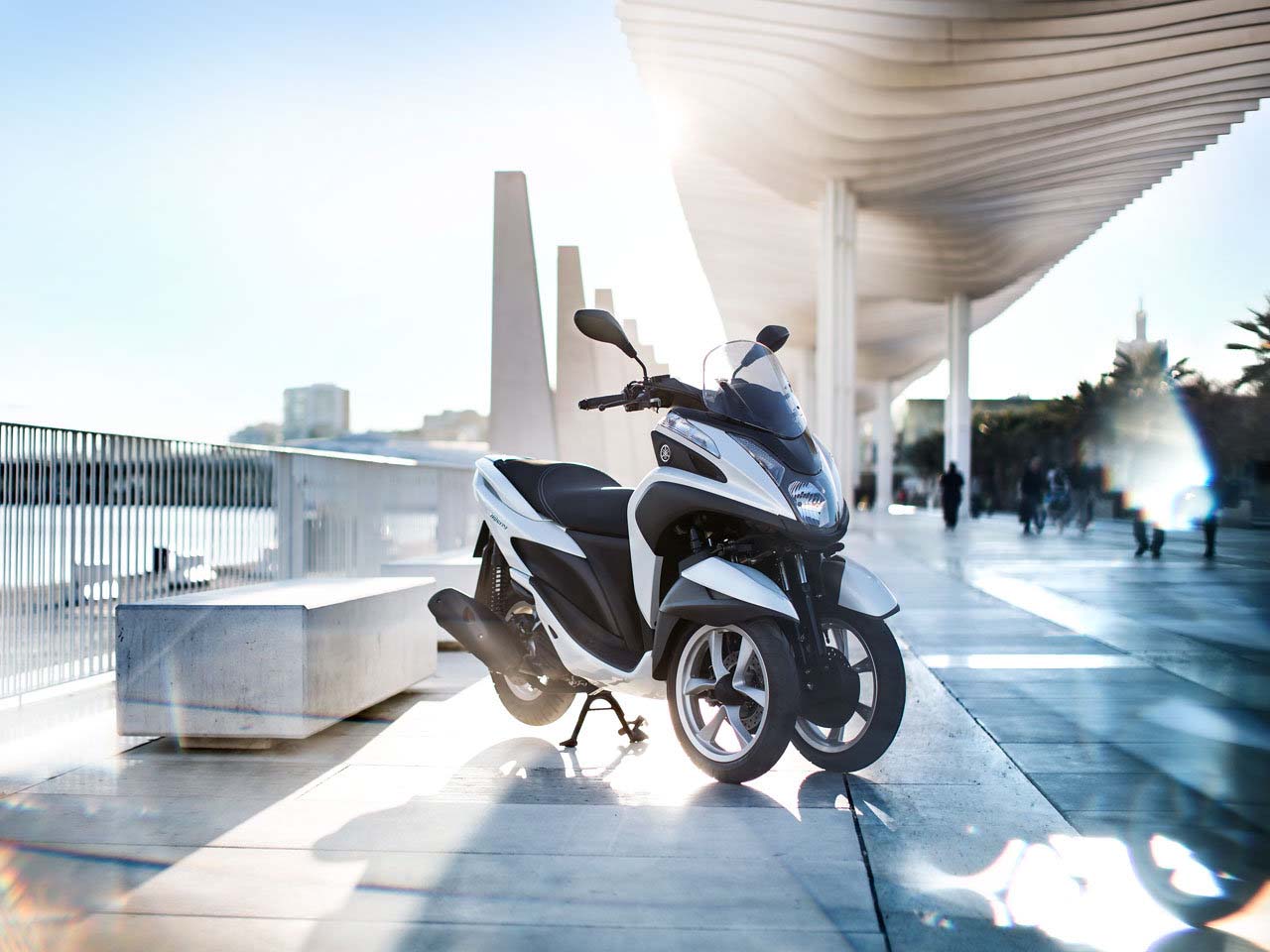

Yamaha Tricity   A Three Wheel Leaning Scooter with CVT Yamaha Tricity LMW scooter 39 635x476

Technical Specifications for the Yamaha Tricity:

Overall length/width/height1,905 mm x 735 mm x 1,215 mm
Seat height780 mm
Weight (dry)146 kg
Weight (with oil and a full fuel tank)152 kg
Engine typeLiquid-cooled, 4-stroke, SOHC, 2-valve
CylindersSingle cylinder
Displacement124.8 cm3
Bore x stroke52.4 x 57.9 mm
Max. output8.1 kW (11PS) / 9,000r/min
Max. torque10.4 N·m (1.1kgf·m) / 5,500r/min
Fuel tank capacity6.6 L
Fuel supply systemFuel injection
Transmission typeV-belt automatic
Tire size (front/rear)90/80-14 / 110/90-12 (both tubeless)
Brakes (front/rear)Hydraulic disc / Hydraulic disc
Suspensions (front/rear)Telescopic / Unit swing

Source: Yamaha
