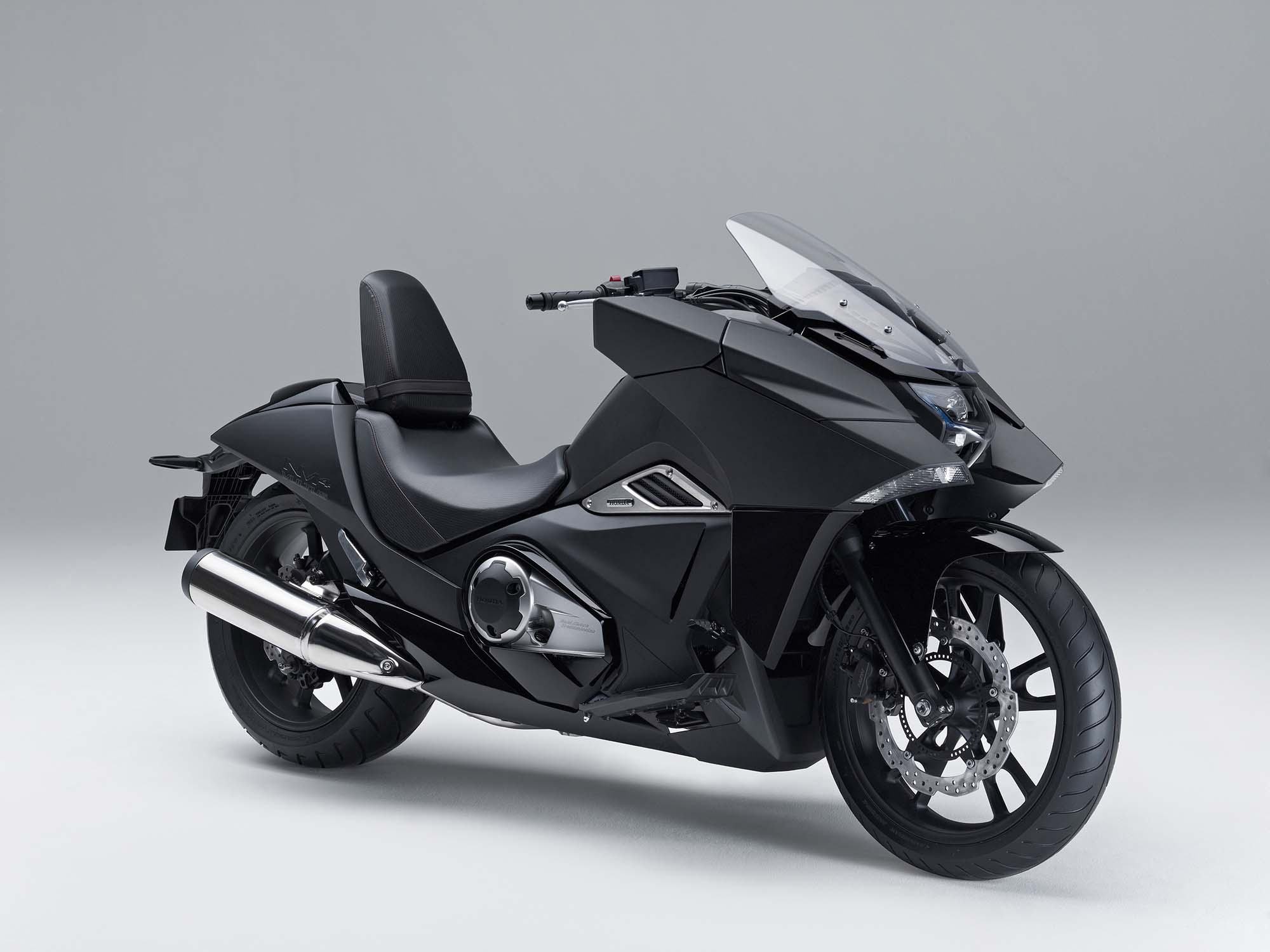

2014 Honda NM4 Vultus Debuts in Japan

03/20/2014 @ 10:46 pm, by Jensen Beeler56 COMMENTS

2014 Honda NM4 Vultus Debuts in Japan honda nm4 1 concept 635x425

According to Honda, the NM4 was “developed under the keywords of ‘the Neo-futuristic’ and ‘COOL,’ pursuing new, unique styling.” We have no idea what that means, but the two designs, the Honda Honda NM4-1 (black) and Honda NM4-2 (white) are sort of a mashup between the company’s DN-01, Valkyrie, and the bike from the anime movie Akira.

To that end, Honda says that the design concept focuses on two elements: “front massive” styling and a cockpit position. More tangible technical items include an LED headlights, tail lights, and turn signals, as well as panniers for storage (featured on the NM4-2). Underneath the hood is a 745cc, two-cylinder, 54hp engine that has Honda’s dual-clutch transmission.

With a fat 200mm rear tire, the NM4 is supposed to give a “prominent” rear-end design, while still being low enough to the ground for a rider to easily get on and off the machine. Breaking cover at the 30th Osaka Motorcycle Show today, the Honda NM4-1 and Honda NM4-2 concepts will also be on display at the Tokyo Motorcycle Show next week.

While Honda’s worldwide press is listing the NM4 as a concept machine, Honda Motor Europe confusingly has the “Honda NM4 Vultus” as a 2014 model. While we try to sort out those to conflicting press releases, leave your thoughts in the comments section about what you think about the NM4.

2014 Honda NM4 Vultus Debuts in Japan honda nm4 2 concept 635x425

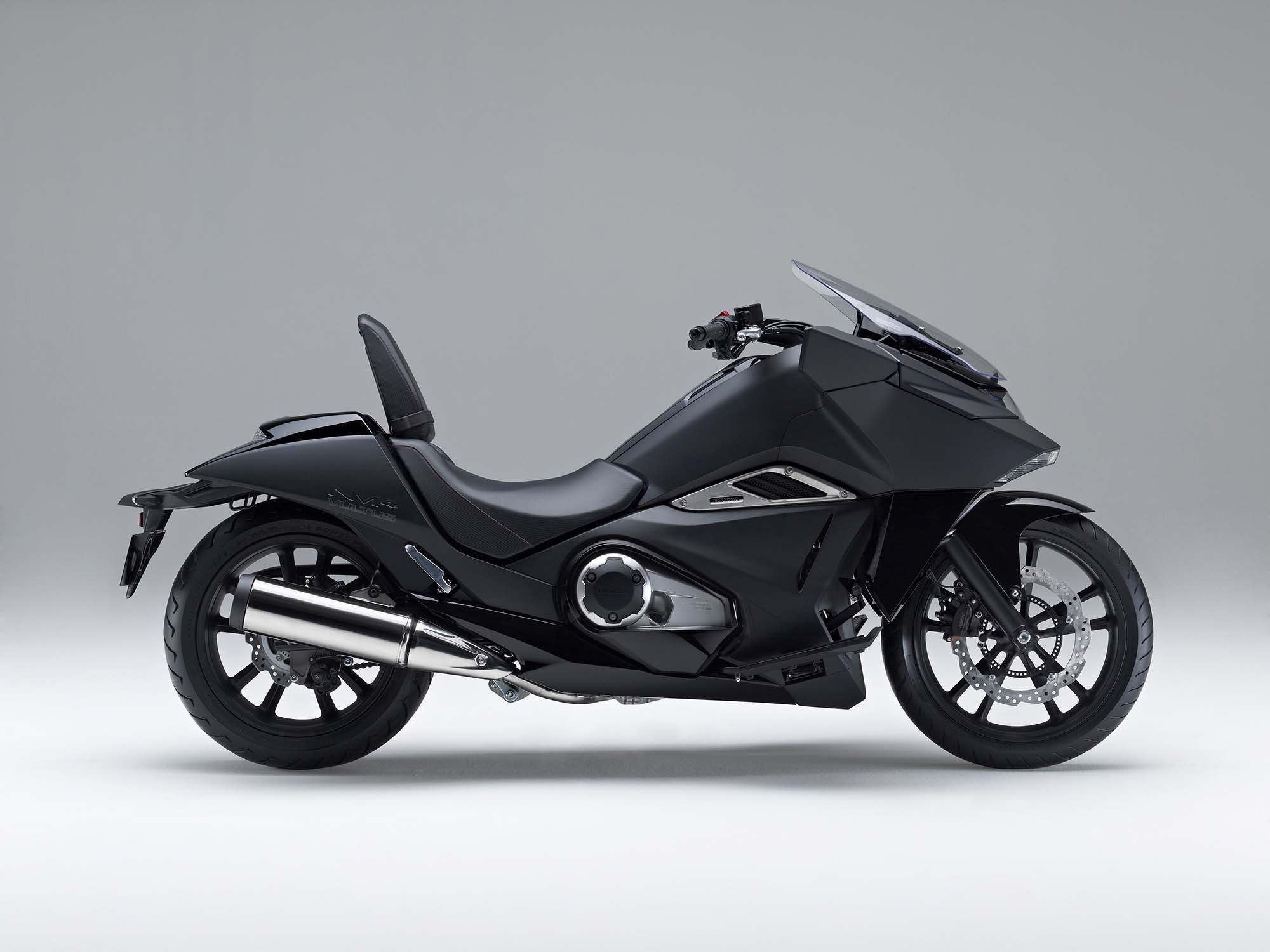

2014 Honda NM4 Vultus Debuts in Japan 2014 Honda NM4 Vultus 19 635x476

2014 Honda NM4 Vultus Debuts in Japan 2014 Honda NM4 Vultus 08 635x476

2014 Honda NM4 Vultus Debuts in Japan 2014 Honda NM4 Vultus 13 635x476

2014 Honda NM4 Vultus Debuts in Japan 2014 Honda NM4 Vultus 16 635x476

2014 Honda NM4 Vultus Debuts in Japan 2014 Honda NM4 Vultus 04 635x476

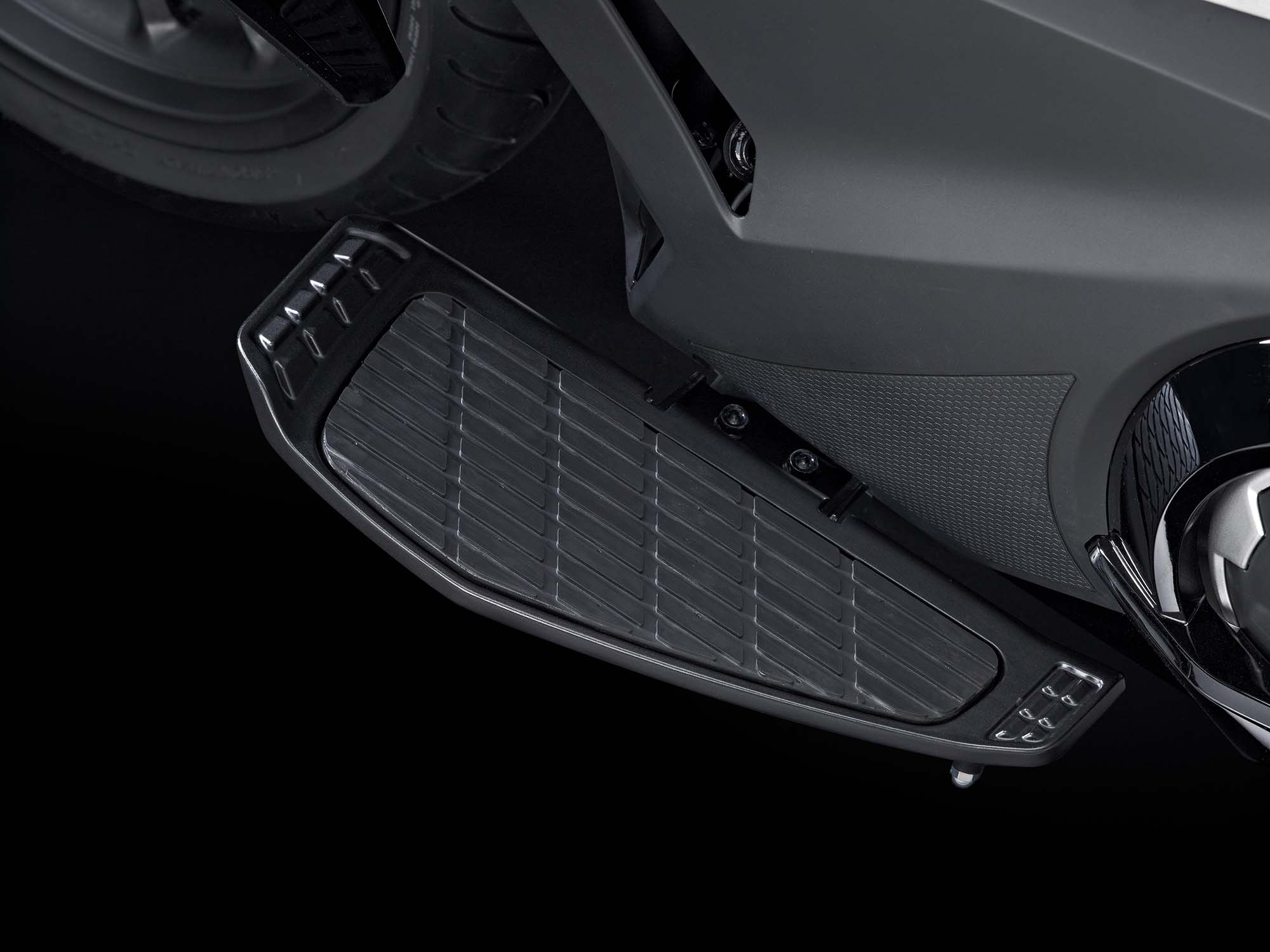

2014 Honda NM4 Vultus Debuts in Japan 2014 Honda NM4 Vultus 07 635x476

Technical Specifications of the 2014 Honda NM4 Vultus:

ENGINE
TypeLiquid-cooled 4-stroke   8-valve, SOHC parallel 2-cylinder
Displacement745cc
Bore ´   Stroke77mm x 80mm
Compression Ratio10.7 : 1
Max. Power Output40.3kW @ 6,250rpm (95/1/EC)
Max. Torque68Nm @ 4,750rpm (95/1/EC)
Oil Capacity3.9   litres
FUEL SYSTEM
CarburationPGM-FI electronic fuel   injection
Fuel Tank Capacity11.6 litres
Fuel Consumption28.4km/l (WMTC mode-Tested   in D-Mode)
ELECTRICAL SYSTEM
StarterElectric
Battery Capacity12V/11.2AH
ACG Output450W/5000rpm
DRIVETRAIN
Clutch TypeWet   multiplate hydraulic 2-clutch
Transmission Type6-speed Dual Clutch   Transmission
Final DriveChain
FRAME
TypeDiamond; steel pipe
CHASSIS
Dimensions (L´W´H)2380mm   x 933mm x 1170mm
Wheelbase1645mm
Caster Angle33°
Trail110mm
Seat Height650mm
Ground Clearance130mm
Kerb Weight245kg
SUSPENSION
Type Front43mm telescopic fork, 125mm stroke
Type RearMonoshock damper,   Pro-Link swingarm, 100mm travel
WHEELS
Type FrontMulti-spoke cast   aluminium
Type RearMulti-spoke cast   aluminium
Rim Size Front18M/C x MT3.50
Rim Size Rear17M/C x MT6.25
Tyre   front120/70   ZR18
Tyre   rear200/50   ZR17
BRAKES
ABS System Type2   channel ABS
Type Front320mm single wavy hydraulic disc with 2-piston caliper and sintered metal pads
Type Rear240mm single wavy hydraulic disc with single-piston caliper and resin mold pads
INSTRUMENTS & ELECTRICS

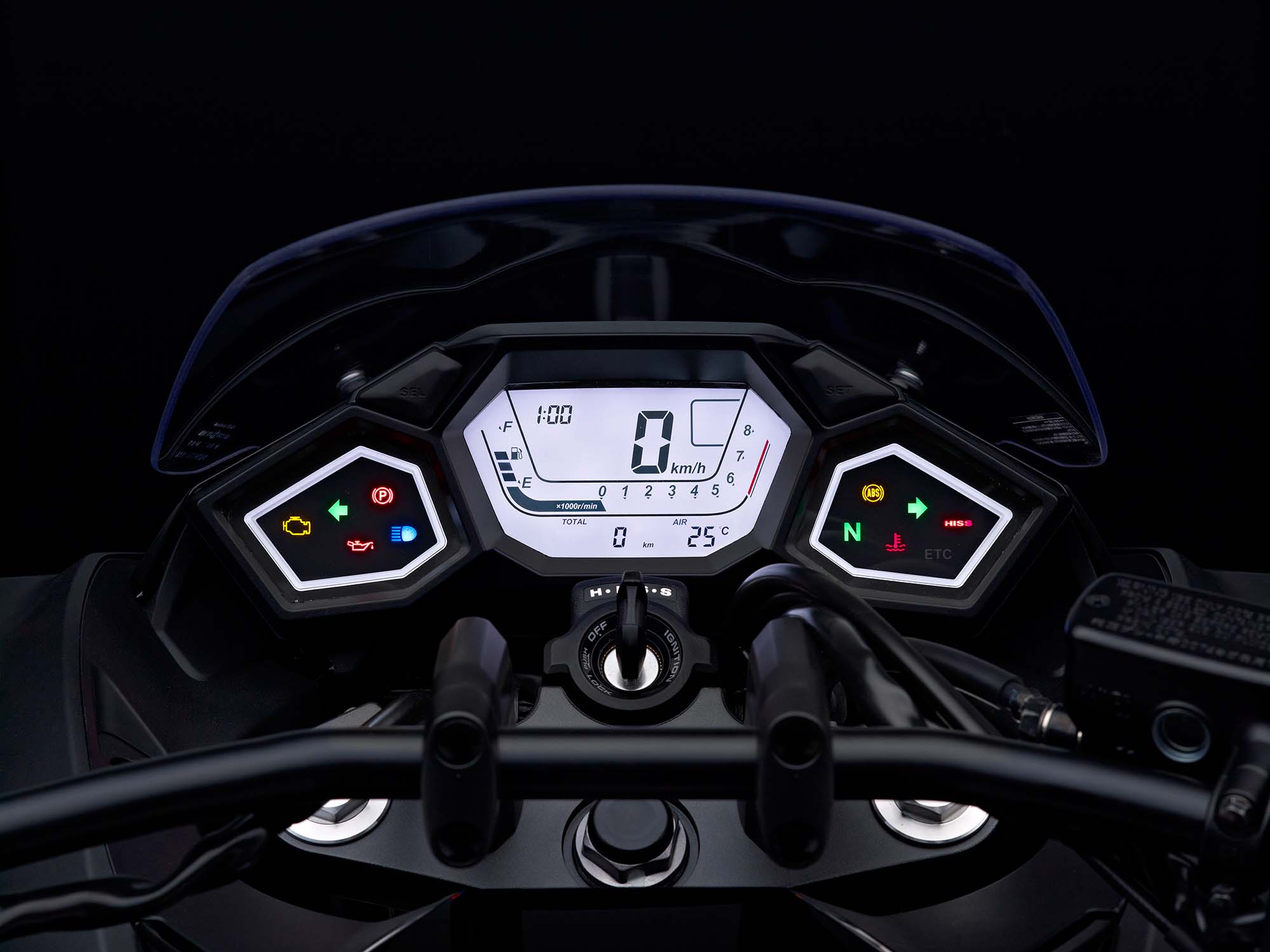

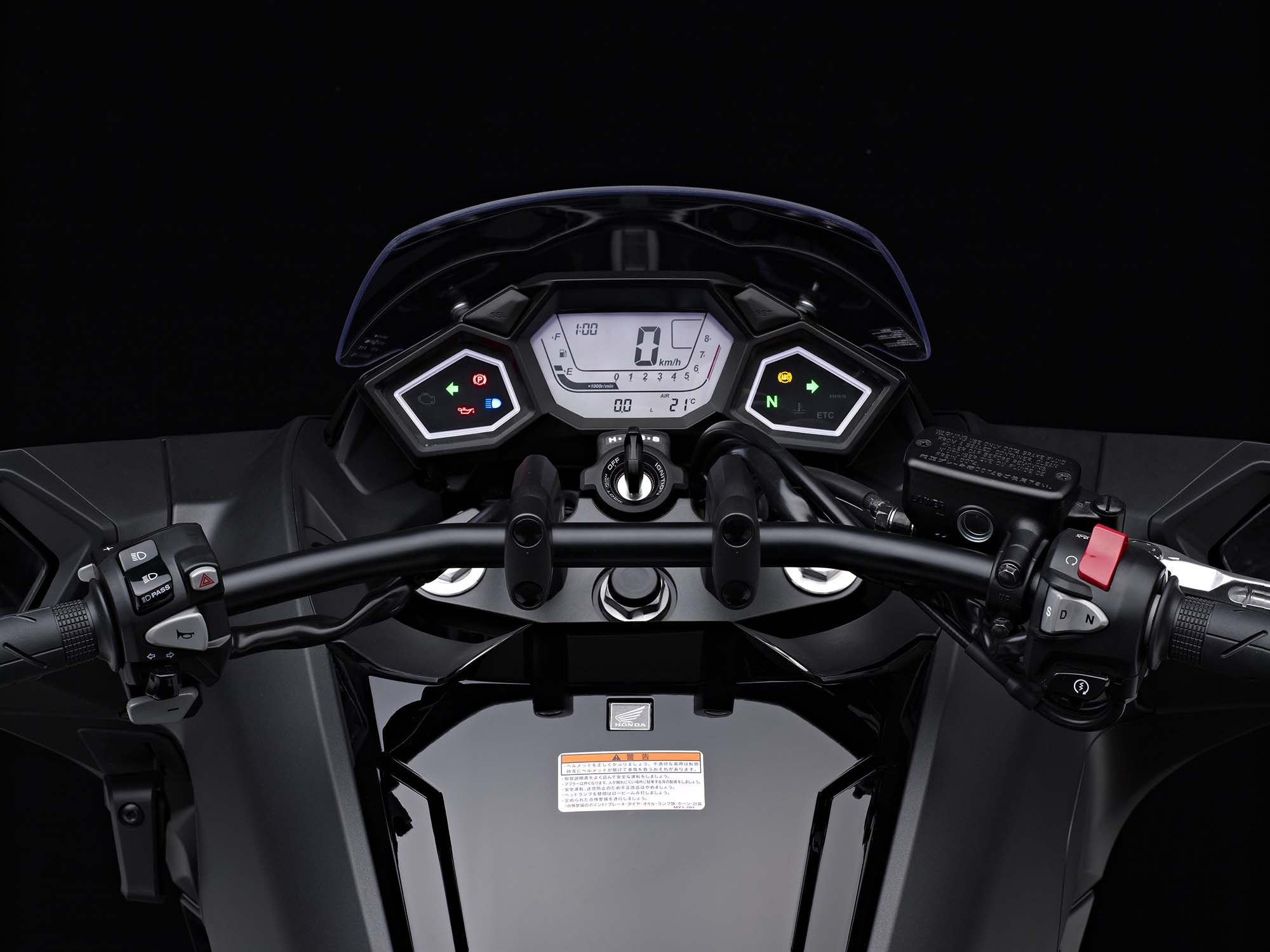

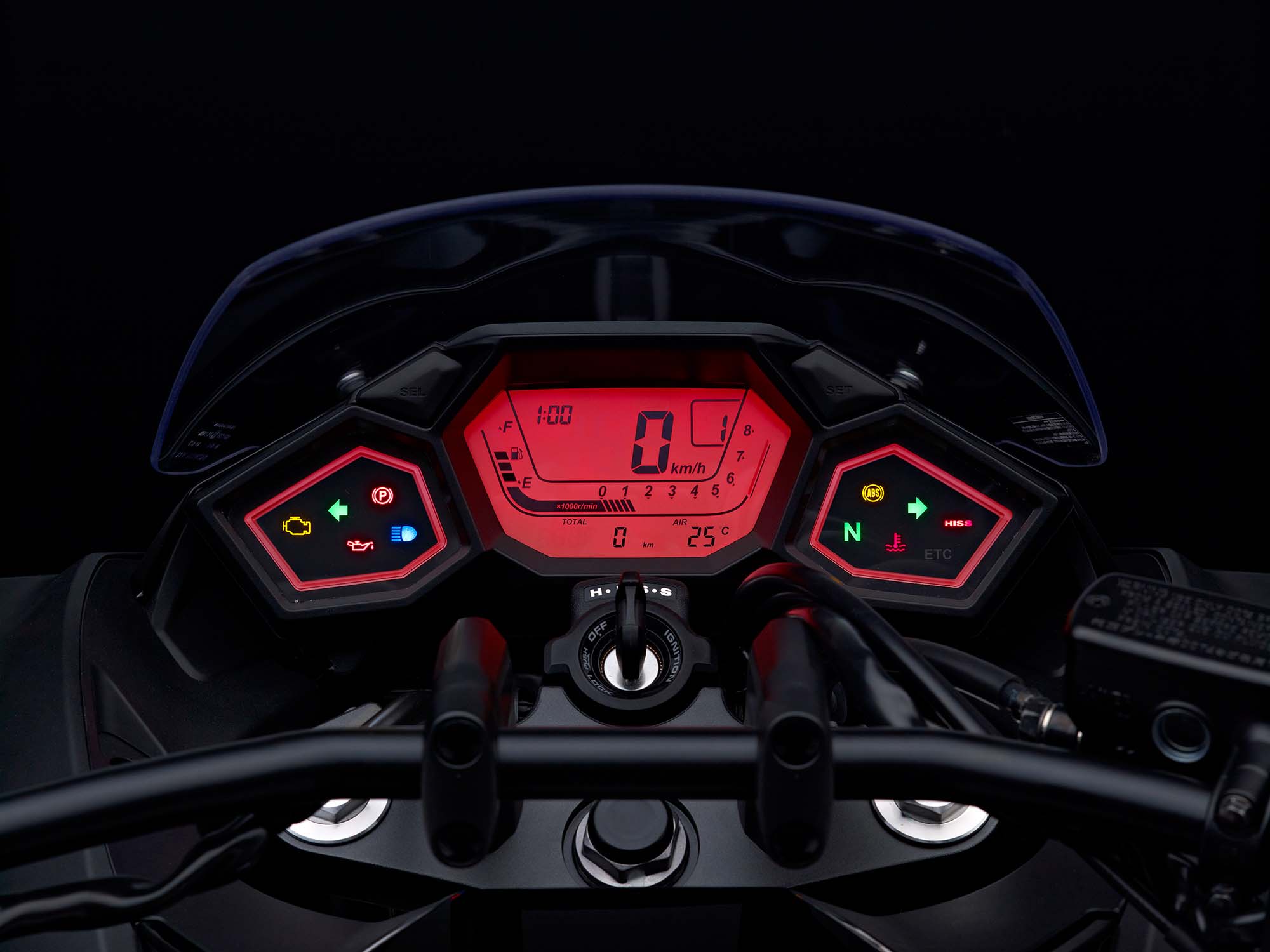

InstrumentsDigital speedometer, digital bar-type tachometer,   clock, bar-type fuel meter, two trip meters, gear position indicator, outside air temperature gauge and coolant temperature warning light.
Security SystemHISS

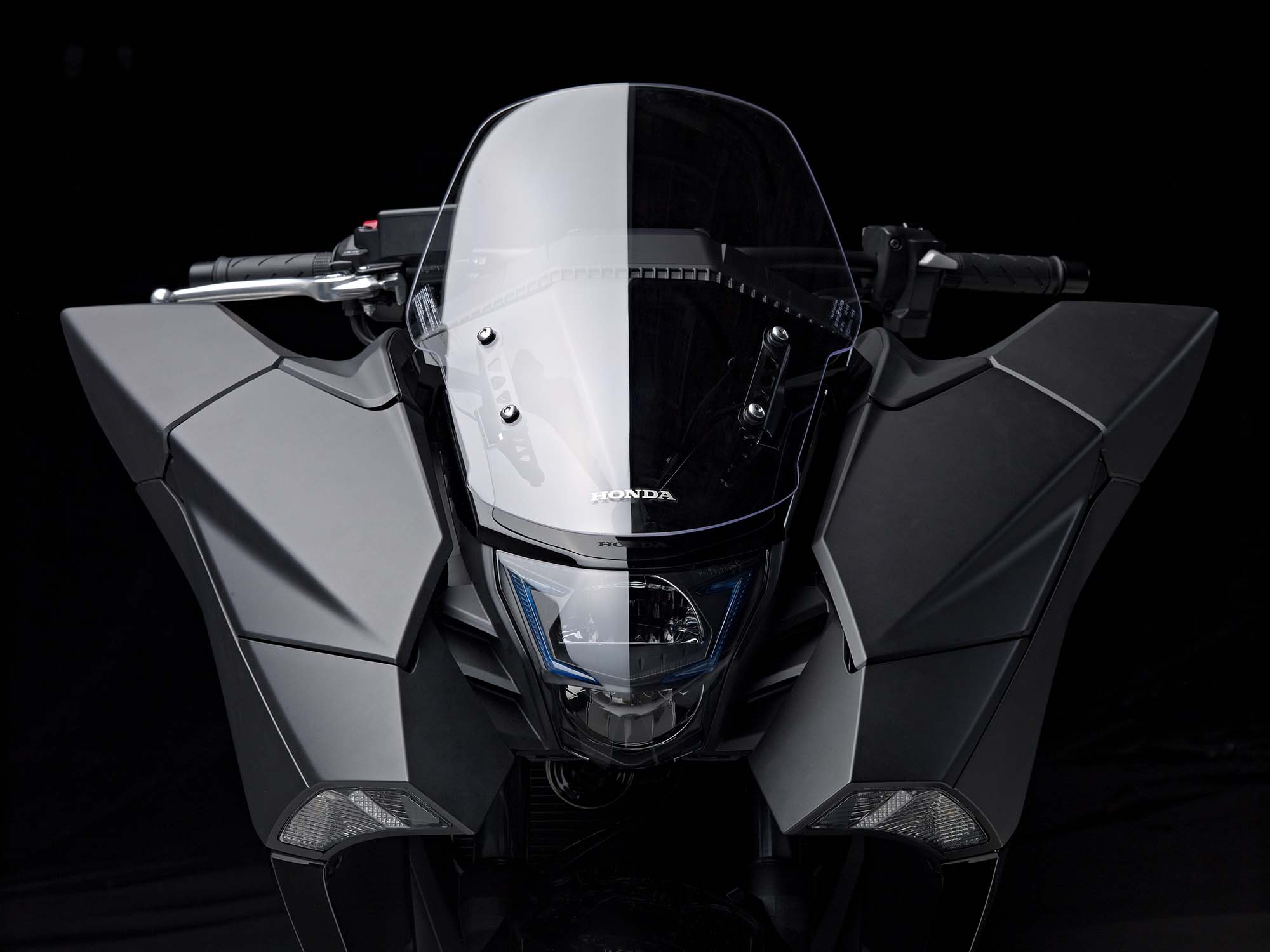

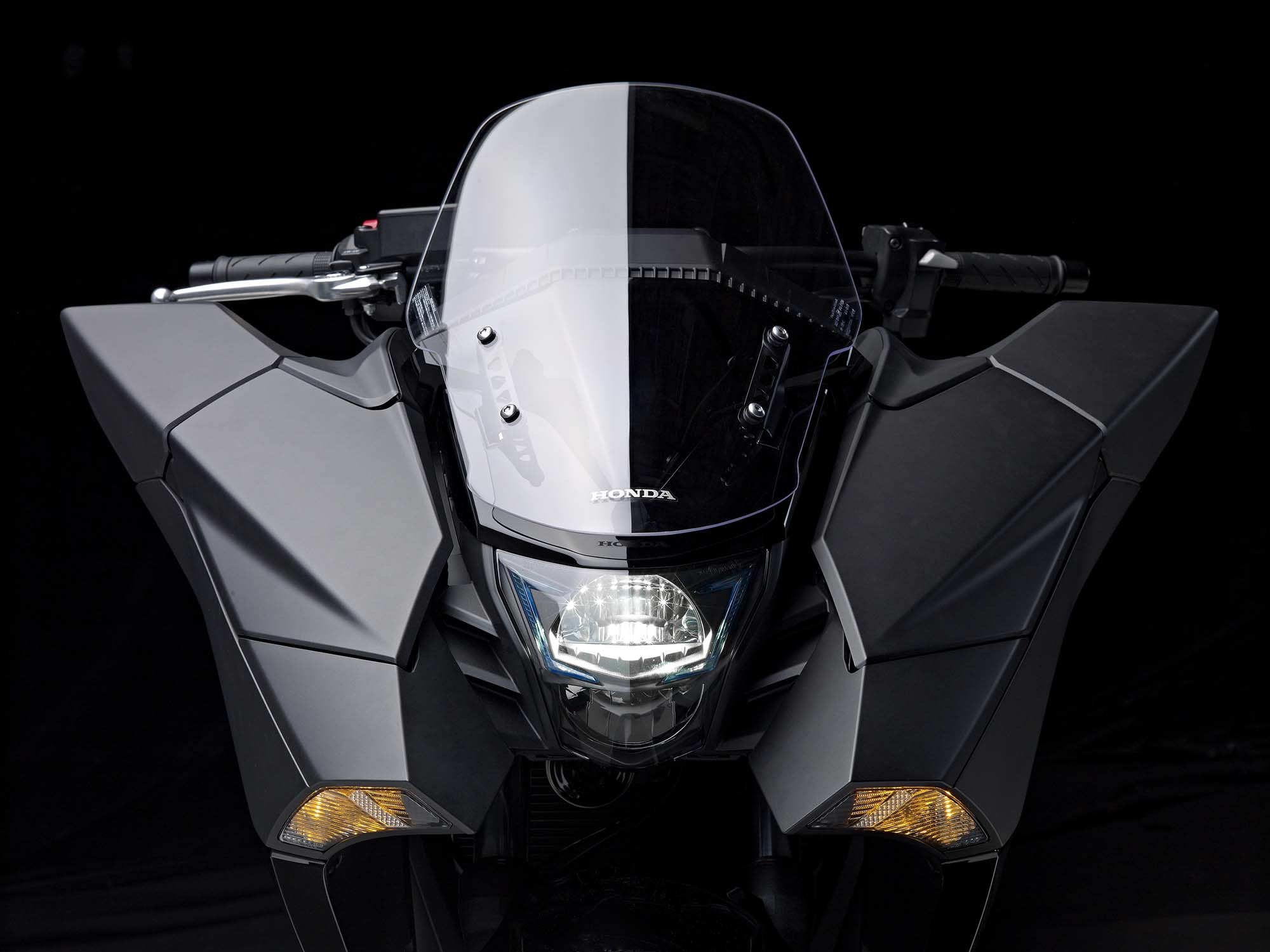

HeadlightLED
TaillightLED

Source: Honda
